Modul izolator scurt circuite seria JA-100, Jablotron JA-110T

JABLOTRON, JA100, Expandor zone
Scrie o recenzie
JA-110T

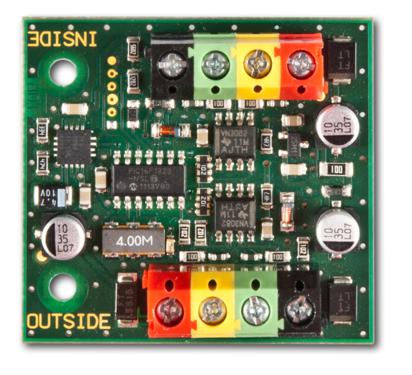

Modul izolator scurt circuite seria JA-100, Jablotron JA-110T

  • Modul izolator scurt circuite.
  • Separa si protejeaza partile nesigure a zonelor cablate
  • Poate fi instalat intr-o carcasa JA-190PL
  • Nu are adresa proprie

Specifications

Power 12 V bus (9 ... 15 V)
Current consumption in standby (quiescent) 5 mA
Current consumption the choice of cable 5 mA
Permissible load for the outdoor branch of the bus max 250 mA
Classification grade 2 according to EN 50131-1, EN 50131-3,
Environment EN 50131-1. general indoor
Operating temperature range -10 to + 40 ° C
Complies with EN 50130-4, EN 55022
