Modul iesire programabila wireless (1A/24VDC), seria JA-100, Jablotron JA-151N
- Nu ocupa nicio adresa in sistemul JA-100
- 1 iesire programabila: 3 iesiri (C, NC, NO)
- Alimentare 12-24 VDC
The JA-151N is wireless PG power output module (1 A/24 V DC). It copies the state of a selected PG output in the JA-100 system (PG 1 to PG 32).

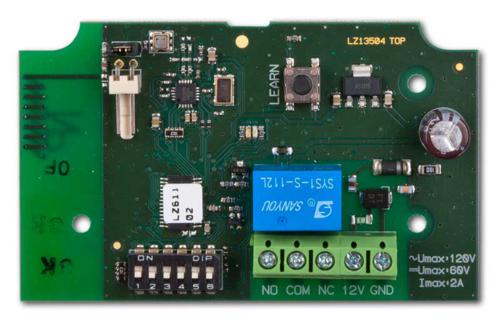

A particular PG output is addressed on the PCB board by using 5 DIP switches. This module does not occupy any postion in the JA-100 system.
Specifications
| Power | 12 - 24 V DC |
|---|---|
| Output relay load: | max. 1 A/30 V DC |
| 1 PG output: | 3 x terminals C, NC, NO |
| Environment according to | EN 50131-1, EN 50131-3: II, internal |
| Operating temperature range | -10 to + 40 ° C |
Disponibilitate:
3-5 zile
