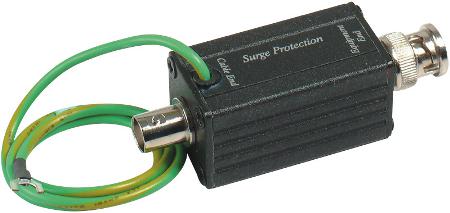

Modul de protectie la supratensiuni si descarcari electrice pe traseele de semnal video prin cablu coaxial.
|
MODEL |
SP 001 |
|
BNC male to BNC female |
Hi Frequency for both CCTV and CATV use |
|
Surge Protection Attack Time |
1 ns |
|
Maximum Surge Current |
4 KV |
|
Surge Life |
300 surges of 100Amps |
|
Normal Resistance Across Coax |
10,000 MΩ |
|
Surge Resistance |
Approx: 0Ω |
|
Band Pass |
0~1 GHZ |
|
Power Passing Capability |
130V AC/DC, 65 Vrms at 10Amps |
|
Insertion Loss |
Less than 0.2 dB |
|
Return Loss (75 ohms) |
16dB |
|
Weight |
80g |
