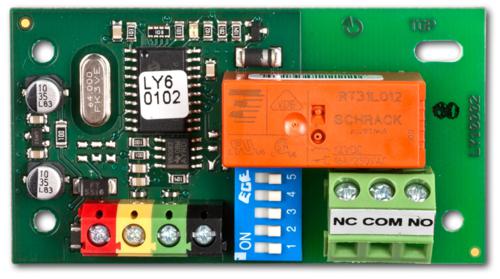

Modul BUS pt iesiri programabile seria JA-100, Jablotron JA-110N

  • Modul BUS pt iesiri programabile
  • Ofera o iesire comutata (8A) NC, NO
  • Poate fi instalat intr-o carcasa JA-190PL
  • Nu este adresabil.

The JA-110N power output module PG offers a switching relay (16 A) with NO or NC modes . The corresponding PG output copied is set by DIP switch (one of the PG outputs PG 1 - 32). The module communicates via the digital bus. It can be installed in JA-190PL multipurpose installation boxes. It is non-addressable (no position in the alarm system).

Specifications:

Power 12 V bus (9 ... 15 V)
Current consumption during backup (relay open / closed) 5 mA / 45 mA
Current consumption for choice of cable 45 mA
relay contact:
Maximum switching voltage 250 V AC / 24V DC
Resistive load (PF = 1) max.16
Inductive, capacitive load (PF = 0.4) max 8A
Minimum DC switching power 0.5W
Protection Class II
Dimensions 70 x 38 x 20 mm
Classification grade 2 according to EN 50131-1, EN 50131-3
Environment EN 50131-1. general indoor
Operating temperature range -10 to + 40 ° C
Complies with EN 50130-4, EN 55022, EN 60950-1
