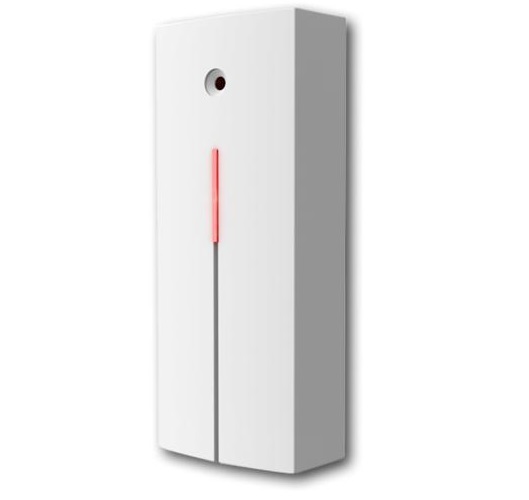

Modul BUS adresabil pentru contact magnetic cablat seria JA-100, Jablotron JA-110M
- Contact magnetic adresabil pentru usa
- 2 intrari programabile NC si NO
- Permite filtrarea timpului minim de declansare (0,5s, 1s, 2s sau 5s)
The JA-110M bus module is used to connect wired magnetic door/window detectors to the bus and contains two independent inputs programmable to be NC/NO or using a balancing resistor. Allows you to set a minimum time for alarm activation (0.5 s, 1 s, 2 s or 5 s). The detector communicates with and is powered by the control panel bus. The detector is addressable and occupies two positions in the system. SMART MEMORY indictaion (SMI) provides a visual (LED) verification of detector triggering. SMI is reset via the keypad.
Specifications
Power | 12 V bus (9 ... 15 V) |
---|---|
Current consumption in standby (quiescent) | 5 mA |
Current consumption for choice of cable | 5 mA |
Maximum length of cable to the detector input | 3 m |
Dimensions | 100 x 40 x 24 mm |
Classification | grade 2 according to EN 50131-1, EN 50131-3 |
Environment | EN 50131-1. general indoor |
Operating temperature range | -10 to +40 ° C |
Complies with /th> | EN 50130-4, EN 55022 |
