Interfata de retea HorNet (tip token ring) pentru centralele, Inim, SmartLoop/NET

Scrie o recenzie
  • Sistem de incendiu

  • Suport tehnic gratuit

  • Livrare rapida

  • Tel. 0348 88 00 21
SmartLoop/NET

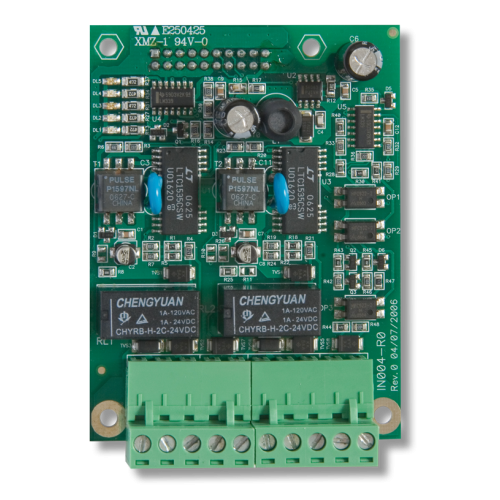

Interfata de retea HorNet (tip token ring) pentru centralele, Inim, SmartLoop/NET

Interfata de retea pentru cetralele Inim, SmartLoop/NET poate fi creata utilizând un cablu cu 3 poli. Lungimea maximă a cablurilor de 2000 metri (permisă între fiecare panou de control) oferă o rețea extrem de tolerantă la erori.Se pot interconecta maxim 30 de centrale.





Control Panel Models

By design

Optional attachment boards

Keypad and Display

48 Status LED board

SmartLoop >2L

SmartLoop PRN

SmartLoop INOUT

SmartLoop NET

SmartLoop PSTN

SmartLAN
SmartLAN/SF

SmartLoop/1010 - P

Yes

Yes

-

Yes

Yes

Yes

Yes

Yes

SmartLoop/2080 - P

Yes

Yes

Yes (Max 3)

Yes

Yes

Yes

Yes

Yes

SmartLoop/1010 - G

Yes

-

-

-

Yes

Yes

Yes

Yes

SmartLoop/2080 - G

Yes

-

Yes (Max 3)

-

Yes

Yes

Yes

Yes

SmartLoop/1010 - S

-

-

-

-

Yes

Yes

Yes

Yes

SmartLoop/2080 - S

-

-

Yes (Max 3)

-

Yes

Yes

Yes

Yes

Specificatii Interfata de retea HorNet (tip token ring) pentru centralele, Inim, SmartLoop/NET :

Intrari Nr. maxim de module / centrala 1
  Tip interfata intrare modul Ethernet
  Intrari/interfete auxiliare 1
Porturi de comunicatie Linie telefonica principala -
  Linie telefonica back-up -
  Port intrare HorNet RS485
  Port Iesire HorNet RS485
  Port Ethernet RS485
  Protocoale de comunicatie suportate HorNet
Alimentare module Tensiune de alimentare modul 27.6V
  Consum de curent in stand-by 40mA
  Consum de curent in alarma 40mA
Centrale compatibile Centrale compatibile SmartLoop 1010-P,SmartLoop 2080-P,SmartLoop 1010-G,SmartLoop 2080-G,SmartLoop 1010-S,SmartLoop 2080-S
Certificari Certificare relevanta tipului de produs -
  Declaratie CE da
  Alte certificari -
Disponibilitate:
3-5 zile

Manual INIM, SmartLoop/NET (DCSTINE0SLOOPNET-WEB.pdf, 602 Kb) [Download]

No reviews found
