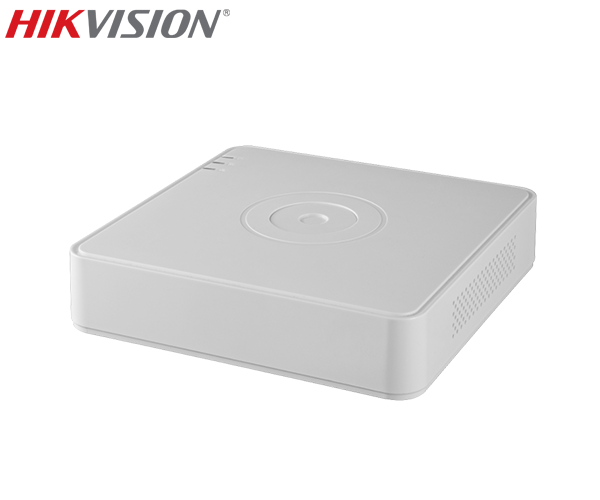

DVR Turbo HD 8 canale video, Hikvision DS-7108HGHI-F1-N

Hikvision, DVR , 8 canale
Scrie o recenzie
DS-7108HGHI-F1-N

DVR Turbo HD 8 canale video, Hikvision DS-7108HGHI-F1-N

DVR cu 8 canale video marca Hikvision DS-7108HGHI-F1-N protocol Turbo HD inregistreaza camere de supraveghere video HDTVI, AHD, CVI, CVBS sau IP.

DVR-ul Hikvision DS-7108HGHI-F1-N suporta 1 HDD SATA cu capacitate pana la 6TB.

Vizualizare Live direct de pe telefonul mobil cu ajutorul aplicatiei iVMS-4500. Este o aplicatie mobila pentru smartphone-uri care ruleaza pe sisteme de operare Windows Phone, Android sau iOS fiind disponibila gratuit pe AppStore. Aceasta poate fi utilizata pentru monitorizarea live, redarea si descarcarea inregistrarilor de la DVR-uri, NVR-uri şi camere IP prin intermediul retelelor Wi-Fi, 2G sau 3G.



Specificatii tehnice DVR Turbo HD Hikvision DS-7108HGHI-F1-N:

Video/Audio Input
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video Compression

H.264,H.264+

Analog Video Input

8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Turbo HD input

1080p25, 1080p30, 720p25, 720p30

IP Video Input

8-ch; Support H.264+/H.264 IP cameras

IP Video Input Resolution Up to 960p resolution
Audio Compression

G.711u

Two-way Audio Reuse the first audio input
Video/Audio Output
HDMI/VGA Output

1-ch,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Encoding resolution

When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N)

Video Bit Rate

32 Kbps ~ 4 Mbps

Stream Type

Video/Video&Audio

Audio Output 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate 64kbps
Synchronous Playback 8-ch
Network management
Remote connections

128

Network protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk Driver
Interface Type 1 SATA Interface
Capacity Up to 6 TB capacity for each disk
External Interface
Network Interface 1,RJ45 10M/100M self-adaptive Ethernet interface
USB Interface Rear panel: 2 × USB 2.0
General
Power Supply

12 VDC

Consumption

≤ 12 W

Working Temperature

-10 ºC to +55 ºC (14 ºF to 131 ºF)

Working Humidity

10% to 90%

Dimensions 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight ≤ 0.8 kg (1.8 lb)
Disponibilitate:
La comanda

Video Recorder

Tip inregistrator
:
  • DVR
Protocoale acceptate DVR:
  • CVBS
  • CVI (HDCVI)
  • Turbo HD
  • AHD
  • IP
Numar canale video
:
  • 8 canale
Rezolutie inregistrare DVR:
  • 1080P ( 1920 x 1080 )
Numar porturi HDD:
  • 1 SATA
Numar canale audio:
  • Toate COAX
  • 1 canal RCA

Fisa tehnica DVR Hiksion DS-7108HGHI-F1-N (UD11441B_Datasheet_of_DS-7100HGHI-F1_N_V3.4.89_20180818.pdf, 732 Kb) [Download]
