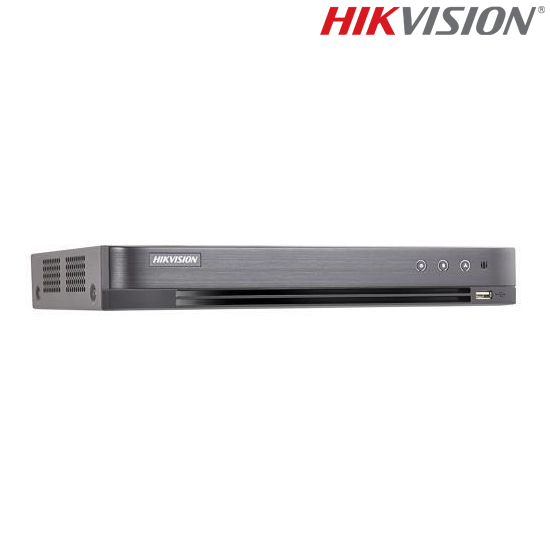

DVR Turbo HD 8 canale video 8MP, Hikvision DS-7208HTHI-K2

Hikvision, DVR , 8 canale
Hard disk pentru stocarea imaginilor in DVR/NVR
DS-7208HTHI-K2

DVR Turbo HD 8 canale video 8MP, Hikvision DS-7208HTHI-K2

DVR Standalone cu 8 canale video Hikvision DS-7208HTHI-K2 protocol de ultima generatie Turbo HD 4.0, inregistrare camere de supraveghere video Turbo HD la rezolutie maxima de 8MP. Suporta si camere de tipul AHD, HDCVI si camere analogice.

Hikvision DS-7208HTHI-K2 suporta 2 HDD SATA cu capacitate pana la 10TB.

Rezolutie monitor 4K prin iesirea HDMI.

Specificatii tehnice DVR Hikvision DS-7208HTHI-K2:

Video/Audio Input
Audio Input:   8-ch
Video Compression:   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:   8-ch,BNC interface (1.0Vp-p, 75 Ω)connection, supporting coaxitron connection
Supported camera types:   Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Support AHD input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
Video Input Interface:   BNC (1.0 Vp-p, 75Ω)
Audio Compression:   G.711u
Audio Input Interface:   4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
CVBS Output:   1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output:   VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording resolution:   8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:   Main stream:
8 MP@15fps, 5 MP@20fps, 3 MP@18fps
4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:   32 Kbps-16384 Kbps
Stream Type:   Video/Video&Audio
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:   1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:   64kbps
Dual Stream:   Support
Playback Resolution:   8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Synchronous Playback:   8-ch
Network management
Remote connections:   64
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Hard Disk Driver
Interface Type:   2 SATA Interfaces
Capacity:   Up to 10 TB capacity for each disk
External Interface
Network Interface:   1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:   1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface:   1; standard RS-485 serial interface, half-duplex
Alarm Input:   8-ch
Alarm Output:   4-ch
General
Power Supply:   12 VDC
Consumption:   ≤ 20W(without hard disks)
Working Temperature:   -10 oC to +55 oC (14 oF to 131 oF)
Working Humidity:   10% to 90%
Dimensions:   380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight:   ≤ 2 kg (4.4 lb)
Disponibilitate:
3-5 zile

Video Recorder

Tip inregistrator :
  • DVR
Protocoale acceptate DVR:
  • CVBS
  • CVI (HDCVI)
  • Turbo HD
  • AHD
  • IP
Numar canale video :
  • 8 canale
Rezolutie inregistrare DVR:
  • 8MP ( 3840 x 2160 )
Numar porturi HDD:
  • 2 SATA
Numar canale audio:
  • 4 canale RCA

Nici o postare găsită

Posteaza recenzie

Fisa tehnica Hikvision DS-7208HTHI-K2 (Datasheet_of_DS-7200HTHI-K2.pdf, 993 Kb) [Download]
