Discount 5%

DVR Turbo HD 4 canale video, Hikvision DS-7104HGHI-F1

Hikvision, DVR , 4 canale
Scrie o recenzie
Pret vechi: 200 Lei
190 Lei
Reducere: 10 Lei  (5%)
DS-7104HGHI-F1
+

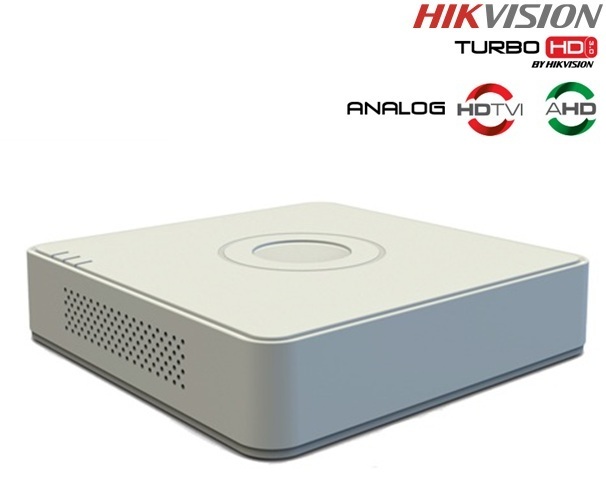

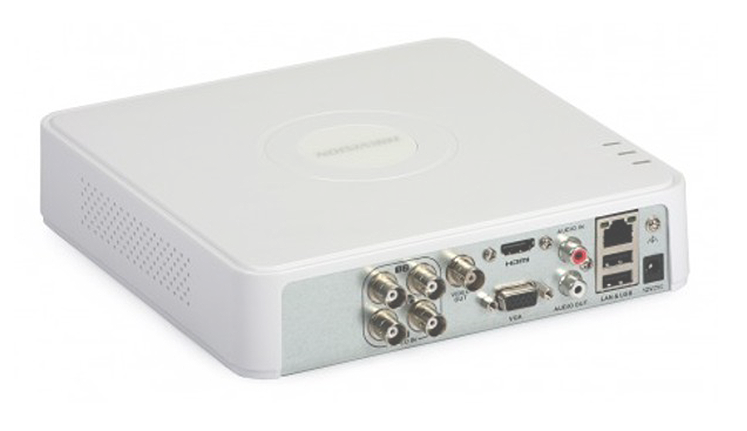

DVR Turbo HD 4 canale video, Hikvision DS-7104HGHI-F1

DVR cu 4 canale video marca Hikvision DS-7104HGHI-F1 protocol Turbo, inregistrare 4 camere de supraveghere video Turbo HD la rezolutie 720P si 1808P Lite sau AHD 720P si camere analogice 960H in timp real.

Camerele de supraveghere video pot fi conectate la inregistratorul video DVR cu cablu coxial pe o distanta de pana la 500metri folosind mufe BNC cu infiletare/compresie dar si prin cablu FTP/UTP folosind videobalun-uri.

DVR-ul Hikvision DS-7104HGHI-F1 functioneaza in regim quadbrid: inregistreaza simultan camere de supraveghere video analogice, camere de supraveghere video TurboHD, AHD si analogice SD.

DVR-ul Hikvision DS-7104HGHI-FN suporta 1 HDD SATA cu capacitate pana la 6TB.

Vizualizare Live direct de pe telefonul mobil cu ajutorul aplicatiei iVMS-4500. Este o aplicatie mobila pentru smartphone-uri care ruleaza pe sisteme de operare Windows Phone, Android sau iOS fiind disponibila gratuit pe AppStore. Aceasta poate fi utilizata pentru monitorizarea live, redarea si descarcarea inregistrarilor de la DVR-uri, NVR-uri şi camere IP prin intermediul retelelor Wi-Fi, 2G sau 3G.

Specificatii tehnice DVR Turbo HD Hikvision DS-7104HGHI-F1:

Video/Audio Input
Audio Input 1-ch
Video Compression

H.264,H.264+

Analog Video Input

4-ch

Analog and HD-TVI video input

4-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron

Connection

IP Video Input

1-ch (up to 5-ch)

IP Video Input Resolution Up to 2 MP resolution
Audio Compression

G.711u

Two-way Audio 1-ch RCA(2.0Vp-p, 1kΩ)
Video/Audio Output
HDMI/VGA Output

1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Encoding resolution

When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N)

Video Bit Rate

32 Kbps ~ 4 Mbps

Stream Type

Video/Video&Audio

Audio Output 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate 64kbps
Dual Stream Support
Synchronous Playback 4-ch
Network management
Remote connections

32

Network protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk Driver
Interface Type 1 SATA Interface
Capacity Up to 6 TB capacity for each disk
External Interface
Network Interface 1; 10M / 100M self-adaptive Ethernet interface
USB Interface 2 USB 2.0 Interfaces
General
Power Supply

12 VDC

Consumption

≤ 8 W

Working Temperature

-10 ºC to +55 ºC (14 ºF to 131 ºF)

Working Humidity

10% to 90%

Dimensions 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight ≤ 0.8 kg (1.8 lb)
Disponibilitate:
In stoc

Video Recorder

Tip inregistrator
:
  • DVR
Protocoale acceptate DVR:
  • Turbo HD
  • AHD
  • SD ( Analog)
Numar canale video
:
  • 4 canale
Rezolutie inregistrare DVR:
  • 1080P ( 1920 x 1080 )
Numar porturi HDD:
  • 1 SATA
Numar canale audio:
  • 1 canal RCA

No reviews found
