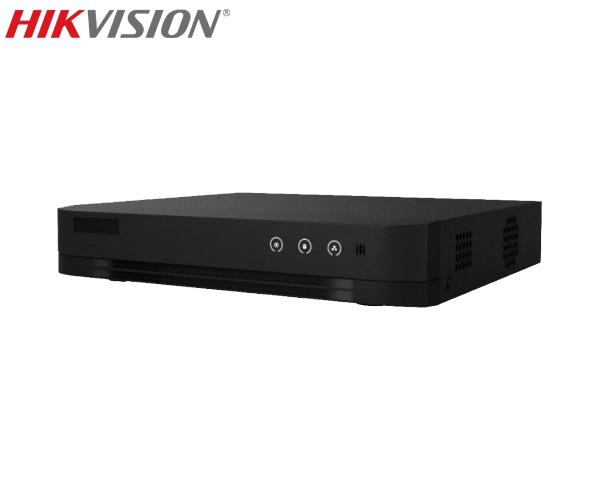

DVR Turbo HD 4 canale video 1080P, Hikvision DS-7204HQHI-K1(S)

Scrie o recenzie
Hard disk pentru stocarea imaginilor in DVR/NVR

DVR Turbo HD 4 canale video 1080P, Hikvision DS-7204HQHI-K1(S)

DVR Turbo HD cu 4 canale video Hikvision DS-7204HQHI-K1(S) inregistrare camere de supraveghere video Turbo HD la rezolutie maxima de 2MP Full HD (1080P).

Camerele de supraveghere video pot fi conectate la inregistratorul video DVR pentru o transmisie la distanta prin UTP sau cablu coaxial: max. 800m pentru 1080P si 1200m pentru semnal HDTVI de 720P.

DVR-ul Hikvision DS-7204HQHI-K1(S) inregistreaza simultan camere de supraveghere video Turbo HD, HDCVI, AHD, CVBS sau IP.

DVR-ul Hikvision DS-7204HQHI-K1(S) suporta 1 HDD SATA cu capacitate pana la 10TB.

Rezolutie monitor Full HD 1080P prin iesirea VGA si HDMI.

Specificatii tehnice DVR Turbo HD Hikvision DS-7204HQHI-K1(S):

Video/Audio Input
Audio Input 4-ch
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1-P, channel 1/2 of DS-7208HQHI-K2-P, and channel 1/2/3/4 of DS-7216HQHI-K2-P..
Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
Supports Hikvision PoC camera
Note: Do not unplug or plug the PoC camera if it is powered by the external power supply
IP Video Input up to 6-ch
Video Input Interface BNC (1.0 Vp-p, 75Ω)
IP Video Input Resolution Up to 6 MP resolution
Audio Compression G.711u
Audio Input Interface RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Input
CVBS Output



1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording resolution

When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Frame Rate Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate 32 Kbps-6 Mbps
Stream Type Video/Video&Audio
Two-way Audio 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output

1-ch RCA(Linear, 1kΩ)

Audio Bit Rate 64kbps
Dual Stream Support
Synchronous Playback


Network management
Remote connections


Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity Up to 10 TB capacity for each disk
External Interface
Network Interface 1; 10M / 100M self-adaptive Ethernet interface
USB Interface 2 USB 2.0 Interfaces
Serial Interface

1; standard RS-485 serial interface, half-duplex


≤ 40W(without hard disks)

Working Temperature -10 oC to +55 oC (14 oF to 131 oF)
Working Humidity 10% to 90%
Dimensions 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

≤ 1.16 kg (2.6 lb)


3-5 zile

Fisa tehnica DVR Hikvision DS-7204HQHI-K1(S) (DS-7208HQHI-K1_S_.pdf, 1,037 Kb) [Download]
