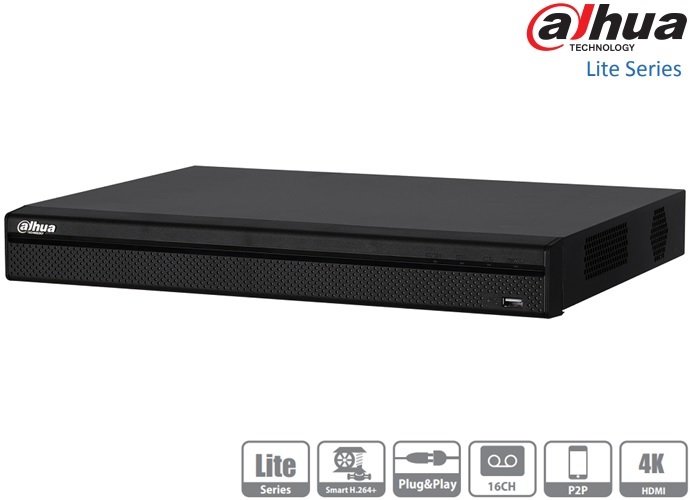

DVR HDCVI Pentabrid 16 canale video 4K, Dahua XVR5216AN-4KL-16P
Dahua XVR5216AN-4KL-16P dispune de noua tehnologie HDCVI 4K cu rezolutie ultra HD - 3840(H)x2160(V), unghiuri de vizualizare mai largi, detalii precise si culori vii de o calitate superioara, se pot conecta camere de supraveghere cu tehnologie PoC (PowerOverCoaxial). Dahua XVR5216AN-4KL-16P suporta 16 canale audio prin protocolul HDCVI ( utilizand camere cu microfon incorporat), semnalul video si audio fiind transmis prin acelasi cablu. Fluxul video poate fi astfel completat de coloana sonora asociata, fiind astfel un avantaj important pentru o supraveghere complexa.
Caracteristici principale Dahua XVR5116AN-4KL-16P:
- DVR HDCVI Pentabrid: suporta camere HDCVI, AHD, TVI, CVBS, IP;
- 16 canale pentabride 4K + 8 canale IP de pana la 8M;
- Inregistrare 1080P realtime pe toate canalele sau 4K non realtime pe toate canalele;
- Incoming bandwidth: 96Mbps;
- 1 intrare si 1 iesire audio standard + audio prin HDCVI;
- Compresie video H.264+/ H.264;
- Iesire video simultana HDMI/ VGA
- Compatibil ONVIF 2.42, CGI
- Camere IP compatibile: Dahua, Arecont, Axis, Dynacolor, General, Onvif, Panasonic, PSIA, Samsung, Sony;
- 2 x HDD SATA pana la 8TB fiecare, USB2.0 & USB3.0;
- Meniu in limba Romana;
- Monitorizare de la distanta prin browser, soft client (DSS/ Smart PSS) sau smartphone.
Specificatii tehnice DVR HDCVI Pentabrid 4K Dahua XVR5116AN-4KL-16P:
| Audio/Video | |
|---|---|
| Tehnologii suportate: | HDCVI/AHD/TVI/CVBS/IP |
| Intrari video analogice: | 16x canale |
| Intrari video IP: | 16+8 canale, fiecare canal pana la 8 MP |
| Iesiri video: | 1x HDMI, 1x VGA |
| Rezolutie redare: |
HDMI: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Intrari/Iesiri Audio: | 1/1 RCA |
| Comunicare bidirectionala: | Refolosind primul canal audio in / out |
| Inregistrare | |
| Rezolutie inregistrare: | 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CI |
| Cadre/Secunda: |
Main Stream:
960H(1~15fps); |
| Tipuri de camere suportate: |
HDCVI : 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps AHD: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps TVI: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps CVBS: PAL/NTSC PoC: Suporta camere HDCVI PoC IP: 16+8 canale, pana la 8 MP fiecare canal |
| Mod inregistrare: | Continuu, Manual, Programat, Detectie de miscare,Pierdere semnal Video, La alarma, Stop |
| Intervalul de inregistrare: | 1-60 min, Preinregistrare 1-30 sec, Post-inregistrare 10-300 sec |
| Compresie video: | H.265+/H.265/H.264+/H.264 |
| Compresie audio: | AAC(doar pentru primul canal), G.711A, G.711U, PCM |
| Bit Rate: | 32Kbps - 8192Kbs |
| Retea | |
| Interfata: | 1x Port RJ-45 (1000M) |
| Protocol retea: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Utilizatori simultani: | 128 |
| Compatibilitate Smart Phone: | iPhone, iPad, Android |
| Stocare | |
| HDD: | 2x port SATA, pana la 10TB fiecare HDD (nu este inclus) |
| eSata: | Lipsa |
| Interfete auxiliare | |
| USB: | 2x porturi USB (1 USB 2.0 , 1 USB 3.0) |
| RS232: | Lipsa |
| RS485: | 1x Port, pentru Control PTZ |
| Functii Speciale | |
| Detectie la miscare: | Zone detectie: 396(22x18), Lipsa semnal |
| Functii redare: | Redare, Pauza, Stop, Inapoi, Redare rapida, Redare lenta, Fisier urmator, Fisier anterior, Full screen, Repetare, Amestecare, Selectie backup, Zoom digital |
| Mod Backup: | USB, Retea |
| Caracteristici generale | |
| Temperatura de functionare: | de la - 10 pana la +55 grade Celsius |
| Alimentare: | DC54V |
| Consum: | 20 W (fara HDD) |
| Dimensiune: | 1 U, 483 x 281 x 53 mm |
| Greutate: | 1.7 kg (fara HDD) |
