Detector de miscare dual PIR wireless, Jablotron JA-100, JA-186P

JABLOTRON, JA100, Interior
  • Sistem de alarma antiefractie, profesional.

  • Module alarma wireless.
    Transmitere alarma GSM sau linie terestra

  • Solicita preconfigurare sistem de alarma.
  • Intreaba de oferta de pret UltraMaster

  • Tel. 0348 88 00 21

321 Lei
JA-186P
+
Suna-ma!

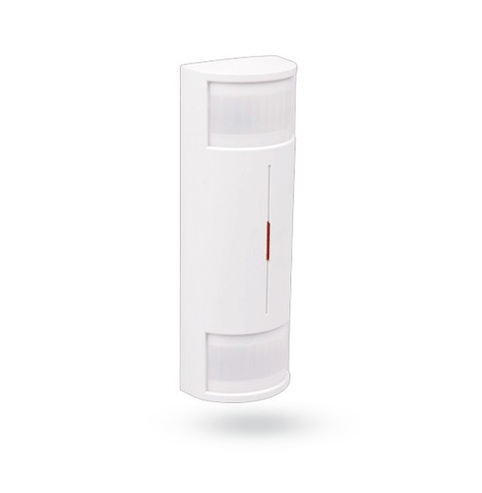

Detector de miscare dual PIR de interior wireless, Jablotron JA-100, JA-186P

  • Detector dual PIR de interior wireless
  • Detectie IR 12m/ 120 gr cu lentila de baza
  • Asigura imunitate ridicata impotriva animalelor prin detectia in 2 zone
  • Alimentare 1*AA 3.6V
  • Autonomie aprox.3 ani
  • comunicare in camp deschis 300m
  • frecventa 868MHz

Designed to detect human body movement inside buildings. Detection in two zones gives high detection certainty against moving pets
The battery-powered detector communicates via Jablotron radio protocol.
The normal installation height is 120 cm above the floor.
The detector has two detection zones each of which covers an angle of 120° and a distance of 12 m.
The imaginary dividing line between both zones is determined by the detector installation height. It is addressable and occupies one position in the alarm.

Specificatii tehnice detector dual PIR wireless JA-186P:

Power Lithium battery type LS (T) 14500 (AA 3.6 V / 2 Ah)
Typical battery life about 3 years (sleep 5 min.)
Communication band 868.1 MHz, Jablotron protocol
Communication range 300m (open area)
Recommended installation height 1.2 meters above the floor
Detection angle / range: 120 ° / 12 m (standard lens)
Environment according to EN 50131-1 II. general indoor
Operating temperature range -10 to +40 ° C
Dimensions, weight 180 x 60 x 55 mm, 200g
Classification EN 50131-1, 50131-2-2, EN 50131-5-3 grade 2
Complies with EN 300220, EN 50130-4, EN 55022, EN 60950-1
Can be operated to ERC REC 70-03
Disponibilitate:
3-5 zile
