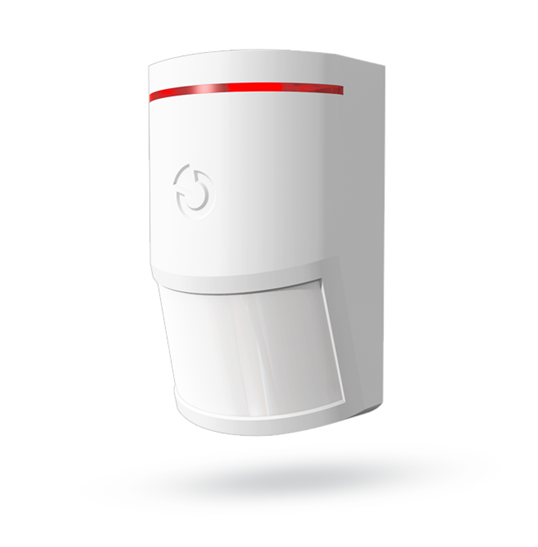

Detector de miscare PIR wireless, seria JA-100, Jablotron JA-180P
- PIR wireless de interior, detecteaza miscarile corpului uman
- Domeniul de detectie pana la 12m/120 grade
- Poate da raspunsuri instantanee sau intarziate, tamper pentru sabotaj
- Efectueaza regulat functia de auto-testare iar rapoartele sunt trimise catre centrala
- Caracteristica de detectie poate fi optimizata prin utilizarea lentilelor coridor JS-7904, PET JS 7906, cortina JS-7901
- Ofera o intrare pe fir pentru detectoare suplimentare de ex. contact magnetic
- Alimentare 1 baterie litium AA 3.6V
- Autonomie aprox. 3 ani
- comunicare in camp deschis 300m
- frecventa 868MHz
Necesita baterii 3* AA 1.5V, alcaline (neincluse).
Specificatii tehnice detector de miscare PIR wireless JA-180P:
| Power | Lithium battery type LS (T) 14500 (3.6 AA / 2.4 Ah) |
|---|---|
| Typical battery life | about 3 years (sleep time 5 min.) |
| Communication frequency | 868.1 MHz, Jablotron protocol |
| Communication range | 300m (open area) |
| Recommended installation height | 2.5 m above the floor |
| Detection angle / range: | 120 ° / 12 m (standard lens) |
| Environment according to EN 50131-1 | II. general indoor |
| Operating temperature range | -10 to +40 ° C |
| Dimensions, weight | 110 x 60 x 55 mm, 100g |
| Classification according to EN 50131-1, EN 50131-2-2, EN 50131-5-3 | Grade 2 |
| Complies with | ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1 |
| Can be operated to | ERC REC 70-03 |
