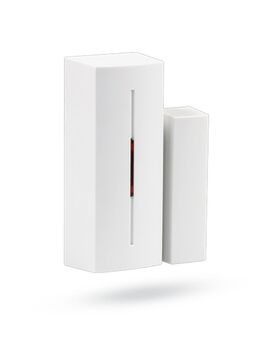

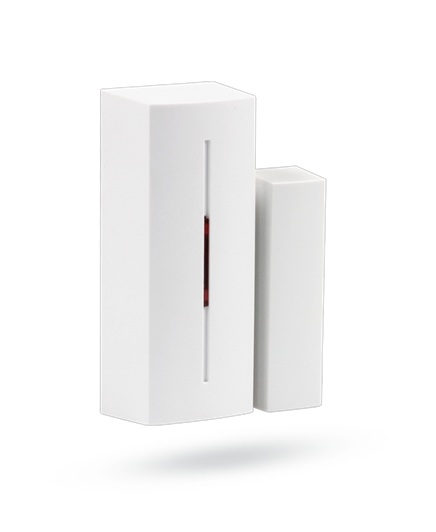

Contact magnetic wireless pentru usi si ferestre de dimensiuni mici, Jablotron JA-100, JA-183M
- Contact magnetic wireless pentru usi si ferestre de dimensiuni mici
- Poate declansa alarma instantaneu sau cu intarziere
- Alimentare 1*CR-123A(3.0V)
- Autonomie aprox.3 ani
- comunicare in camp deschis 300m
- frecventa 868MHz
- dimens. 31x75x23mm.
The JA-183M offers a conveniently small size and great door detector features. It is designed to detect doors or windows opening.
The door opening detector reacts to the removal of its magnet unit.
It can trigger an instant or delayed intruder alarm.
It is addressable and occupies one position in the alarm.
Specificatii tehnice contact magnetic Jablotron JA-183M:
| Power | Lithium battery type CR-123A (3.0V 1.5 Ah) |
|---|---|
| Typical battery life | about 3 years (max. 20 activations per day) |
| Communication band | 868.1 MHz, Jablotron protocol |
| Communication range | 300m (open area) |
| Dimensions |
transmitter part: 75 x 31 x 23 mm magnet A: 56 x 16 x 15 mm, magnet B: Ø10 x 4 mm |
| Environment according to EN 50131-1 | II. general indoor |
| Operating temperature range | -10 to +40 ° C |
| Classification | grade 2 according to EN 50131-1, EN 50131-2-6, EN 50131-5-3 |
| Complies with | ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1 |
| Can be operated to | ERC REC 70-03 |
Disponibilitate:
3-5 zile
Sistem alarma
Tip alarma:
- Wireless
Gama produse:
- JA100
Detectori:
- Interior
