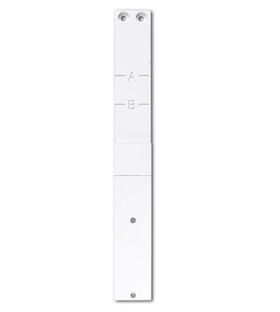

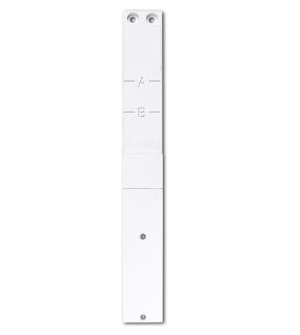

Contact magnetic "invizibil" instalat in tocul ferestrelor JA-182M
- Contact magnetic "invizibil" instalat in tocul ferestrelor (poate fi usor integrat in majoritatea ferestrelor)
- 2 culori disponibile: alb, maro
- Alimentare 2*CR2354(3V)
- Autonomie aprox.3 ani
- comunicare in camp deschis 200m
- frecventa 868MHz
- dimens.25x192x9mm
Necesita baterii 2*CR2354 (3V/ 1Ah)
The JA-182M is designed for the detection of windows (door) opening. An “invisible" magnetic sensor is installed into plastic or wooden window frames and is therefore totally discreet.
The detector is suitable for use with the majority of manufactured windows.
Specificatii tenhnice contact magnetic JA-182M:
Power | type CR2354 Lithium Battery-2 pack (3.0 V 1 Ah), source type C |
---|---|
Typical battery life | about 3 years (max. 5 activations per day) |
Communication band | 868.1 MHz, Jablotron protocol |
Communication range | 200m (open area) |
Dimensions | 192 x 25 x 9 mm |
Environment according to EN 50131-1 | II. general indoor |
Operating temperature range | -10 to +40 ° C |
Classification | grade 2 according to EN 50131-1, EN 50131-2-6, EN 50131-5-3 |
Complies with | ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1 |
Can be operated to | ERC REC 70-03 |
