Cititor RFID pentru control acces wireless pe 2 cai cu tastatura si aisaj LCD, seria JA-100, Jablotron JA-154E
- Include un segment de control si daca este nevoie poate fi echipat cu maxim 20 segmente de control JA-192E
- Implementeaza functia Smart Radio Wake-up
- Alimentata cu 2 baterii alcaline 1.5V AA
- Automonie 1 an
- comunicare in camp deschis 200m
- frecventa 2*868MHz

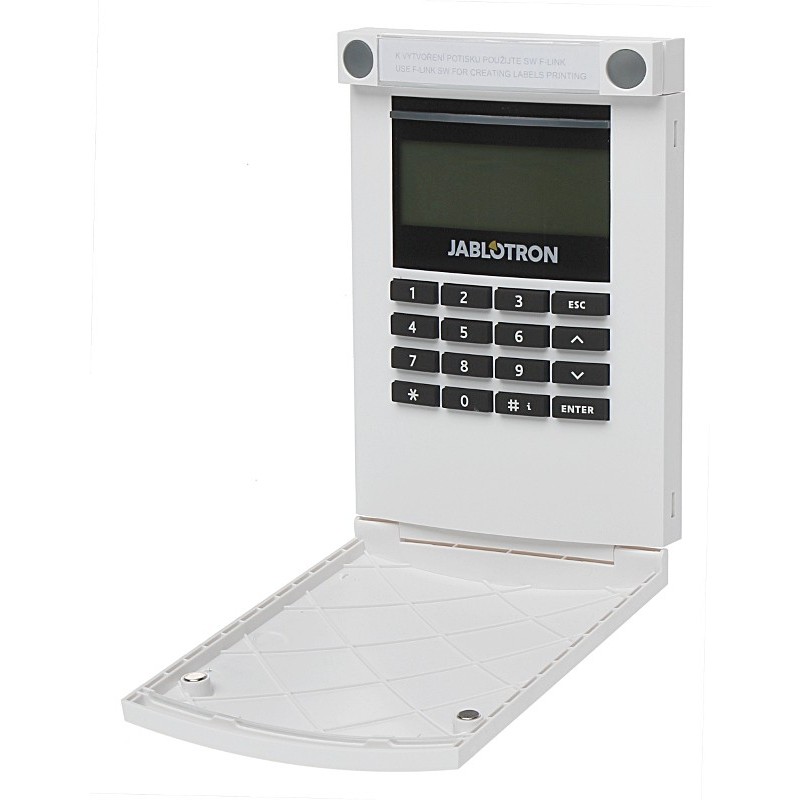

The JA-154E is a two-way wireless access module with an LCD display, a keypad and an RFID reader for security system control. Contains one operating segment and, if needed, can be equipped with up to 20 JA-192E control segments.
The unit allows simple system control using interlocking segments. It features Smart Radio Wake-up (SRW) which reacts to, for example, a wireless door detector being triggered and effects the automatic termination of sleep mode in a set system during the entrance delay.
The module is powered by alkaline batteries.
The module is addressable and occupies one alarm system position.
Specifications
| Power | 4 x AA alkaline batteries 1.5 V |
|---|---|
| Typical battery life | 1 year |
| Frequency | bidirectional Jablotron protocol 868 MHz |
| Communication range | 200 meters |
| Dimensions | 102 × 151 × 33 mm |
| Security Level | grade 2, EN 50131-1, EN 50131-3, EN 50131-6 |
| Environment according to EN 50131-1, EN 50131-3 | II indoor general |
| Temperature | -10 to 40 ° C |
