Cititor RFID 125 KHz pentru control acces seria JA-100, Jablotron JA-112E

JABLOTRON, JA100, Cititoare card
207 Lei
JA-112E
+
Suna-ma!

Cititor RFID 125 KHz pentru control acces seria JA-100, Jablotron JA-112E

  • Cititor RFID 125 KHz pentru control acces
  • Include un segment de control si daca este nevoie poate fi echipat cu maxim 20 segmente de control JA-192E
  • Functie de economisire a energiei cand alimentarea este intrerupta
  • Comunicarea si alimentarea se realizeaza prin BUS.

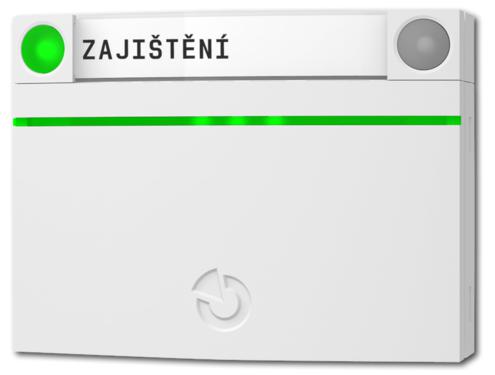

The JA-112E is an access module with an RFID reader to control a JA-100 security system. Contains one operating segment and, if needed, can be equipped with up to JA-192E 20 control segments.
The JA-112E allows simple control of the system using interlocking segments. Communicates and is powered by the bus. The module has a power saving function.
The module is addressable and occupies one position in the alarm system.

Specifications

Power control panel bus (9 ... 15 V)
Current consumption in standby (quiescent) 10 mA
Current consumption for choice of cable 15 mA
Current for each segment 0.5 mA
RFID frequency 125 kHz
Operating temperature range -10 to +40 ° C
Environment EN 50131-1. general indoor
Classification grade 2 according to EN 50131-1, EN 50131-3
Complies with ETSI EN 300330, EN 50130-4, EN 55022, EN 60950-1
Can be operated to ERC REC 70-03
Disponibilitate:
3-5 zile

Sistem alarma

Tip alarma:
  • Cu fir
Gama produse:
  • JA100
Periferice:
  • Cititoare card
