Cititor RFID 125 KHz pentru control acces cu tastatura si afisaj LCD, seria JA-100, Jablotron JA-114E
- Cititor RFID 125 KHz pentru control acces cu tastatura si afisaj LCD
- Include un segment de control si daca este nevoie poate fi echipat cu maxim 20 segmente de control JA-192E
- Optiunile din meniu permit vizualizarea evenimentelor, controlul partitiilor, zonelor, iesirilor PG
- Functie de economisire a energiei cand alimentarea este intrerupta
- Comunicarea si alimentarea se realizeaza prin BUS.

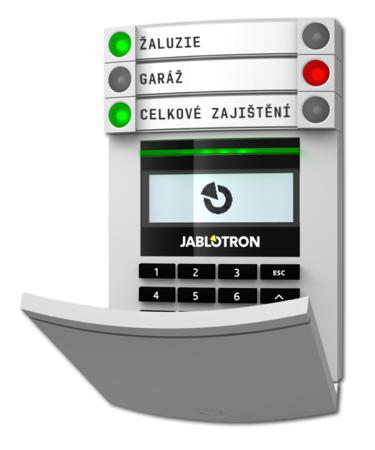

The JA-114E is an access module with LCD display, control keypad and an RFID reader to control a security system. Contains one operating segment and, if needed, can be equipped with up to 20 JA-192E control segments.
The JA-114E allows simple control of the system using interlocking segments.
Communicates via the bus and is powered by it too.
The module has a power saving function.
The module is addressable and occupies one position in an alarm system. The menu allows for the easy control and management of sections, zones, PG outputs and reports on PG events.
Specifications
Power | control panel bus (9 ... 15 V) |
---|---|
Current consumption in standby (quiescent) | 15 mA |
Current consumption for choice of cable | 50 mA |
Current of each segment | 0.5 mA |
RFID frequency | 125 kHz |
Operating temperature range | -10 to +40 ° C |
Environment | EN 50131-1. general indoor |
Classification | grade 2 according to EN 50131-1, EN 50131-3 |
Complies with | ETSI EN 300330, EN 50130-4, EN 55022, EN 60950-1 |
Can be operated to | ERC REC 70-03 |
