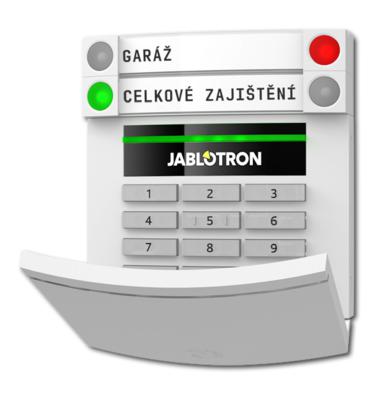

Cititor RFID 125 KHz pentru control acces cu tastatura, seria JA-100, Jablotron JA-113E
- Cititor RFID 125 KHz pentru control acces cu tastatura
- Include un segment de control si daca este nevoie poate fi echipat cu maxim 20 segmente de control JA-192E
- Functie de economisire a energiei cand alimentarea este intrerupta
- Comunicarea si alimentarea se realizeaza prin BUS.
The A-113E is an access control module with a keypad and an RFID card reader to control a security system. Contains one operating segment and, if needed, can be equipped with up to 20 JA-192E control segments.
Allows the simple control of a security system using segments. Communicates via and is powered by the bus.
The module has a power saving function.
The module is addressable and occupies one position in the alarm system.
Specifications
| Power | control panel bus (9 ... 15 V) |
|---|---|
| Current consumption in standby (quiescent) | 10 mA |
| Current consumption for choice of cable | 15 mA |
| Current for each segment | 0.5 mA |
| RFID frequency | 125 kHz |
| Operating temperature range | -10 to +40 ° C |
| Environment | EN 50131-1. general indoor |
| Classification | grade 2 according to EN 50131-1, EN 50131-3 |
| Complies with | ETSI EN 300330, EN 50130-4, EN 55022, EN 60950-1 |
| Can be operated to | ERC REC 70-03 |
Sistem alarma
Tip alarma:
- Cu fir
- Wireless
Gama produse:
- JA100
Periferice:
- Expandor zone
