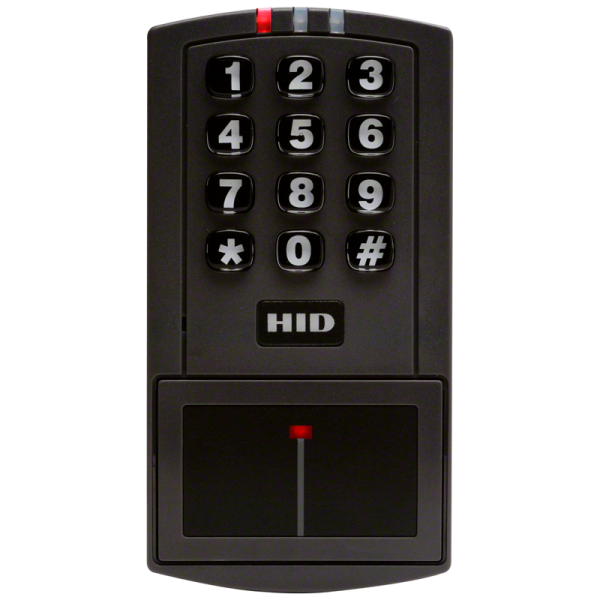

Cititor Proximitate stand-alone HID EntryProx

Scrie o recenzie
4045xGNU0

HID's EntryProx stand-alone reader truly stands alone in what it delivers. Compatible with all HID proximity cards and keytags, EntryProx™ provides single-door proximity access control and is ideal for unique applications. The reader, designed to be weatherand vandal-resistant, can be mounted indoors or outdoors up to 10 feet away from the control unit using the detachable antenna module. The versatile, attractive unit is easily modified to become an on-line reader by switching to Wiegand output mode, allowing it to connect to any OEM controller and provide card and PIN output.

The ADA-compliant 12-position keypad features large white-on-black numbers, enabling PIN entry or programming, with optional audio feedback and a raised dot on the 5 key. For extra security, EntryProx's keypad incorporates the "invalid PIN" lockout feature, preventing unauthorized trial-and-error PIN code entry.

The reader also features faster programming, enabling end-users to batch load up to 2,000 HID cards or keytags, in any format up to 37 bits, by entering a single keypad command sequence. A Block Delete feature allows for efficient badge administration by deleting a sequential range of cards/keytags from the EntryProx by user location.

Key Features

  • Ideal for Unique Applications - Proximity access control for small installations or remote locations.
  • Trouble-Free Keypad Input - Extra secure keypad enables PIN entry or programming.
  • Remote Monitoring - Configurable to be used in conjunction with an on-line system.
  • Faster Programming - Batch load up to 2,000 HID cards or keytags with a single keypad command sequence.
  • Efficient Badge Administration - Block Delete allows deletion of cards/keytags by user location.

Specificatii:



Typical maximum* read rangeProxCard® II card up to 3.0" (7.6 cm)
ISOProx® II card up to 2.5" (6.35 cm)
DuoProx® II card up to 2.5" (6.35 cm)
Smart ISOProx® II up to 2.5" (6.35 cm)
Smart DuoProx® II up to 2.5" (6.35 cm)
HID Proximity & MIFARE® Card up to 2.5" (6.35 cm)
ProxCard® Plus card up to 1.0" (2.5 cm)
ProxKey™ II Keyfob up to 1.5" (3.8 cm)
Microprox® Tag up to 2.0 " (5.1 cm)

*Depending on local installation conditions.

Dimensions
5.25" x 2.75" x 1.625" (13.33 x 6.98 x 4.1 cm)

Power Supply/ Current Requirements
10 - 15 VDC, reverse voltage protected
Linear supply recommended, 150 mA @ 12 VDC

Relay Outputs
Strike Relay - Form C, switches up to 1A @ 30 VDC
Aux Relay - Form C, switches up to 1A @ 30 VDC

Monitor Inputs
Door Position - N.O. dry contact
Request to Exit - N.O. dry contact

Sounder
4000Hz, defeatable

LEDs
Bi-Color (Red/Green), Amber, Infrared (use with optional palmtop printer)

Operating Temperature
-31º to 150ºF (-35º to 66ºC)

Operating Humidity
5% to 95% relative humidity non-condensing

Cable Distance
Remote Reader Module - 10 feet (3m)
Wiegand Interface - 500 feet (152m)
Recommended cable is ALPHA 1295C (22AWG) 5-conductor stranded with overall shield or equivalent

Operation
Strike Time: 1 - 99 seconds (Adjustable)
Strike Mode: Access Timer or Toggle/Latch
Door Ajar Time: 10 - 990 Seconds (Adjustable)

Card Programming
26-bit format - batch enrollment
OEM proprietary format - present card to enroll

Facility Code Processing Options (26-bit only)
Check Facility Code and Card ID
Check Facility Code only (accept any ID#)

Certifications
UL 294
FCC Certification, United States
Canada Certification
CE Mark, Europe
GS Mark by TÜV Rheinland
Australia C-Tick Mark
New Zealand





Korea



Disponibilitate:
La comanda

Control acces

Tip cartela:
  • EM - 125 KHz
Tip control acces:
  • Standalone
  • Cu Cod
  • Cu Cartela
Montaj / Instalare:
  • Interior
  • Exterior

hid selector (hid-prox-readers-ch-en.pdf, 147 Kb) [Download]
