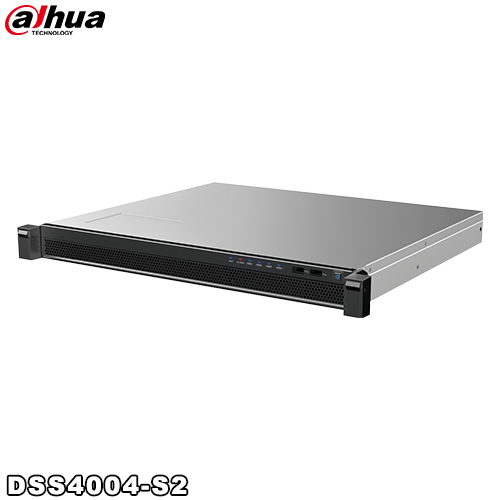

Centru management supraveghere video, DAHUA DSS4004-S2

System

Main Processor

64 bit 4 core CPU (CORE-I3-6100)

Operating System

Linux

Power

Support hot swap

Memory

8GB(1×8GB)

Chassis

1.0mm SGCC steel plate

Interface

Network Port

4 Ethernet Ports（10/100/1000Mbps )

RS232

Reserved

RS485

Reserved

USB Port

Front panel: 2 × USB 3.0, Rear panel: 2 × USB 3.0

onboard panel:1 × USB 2.0

HDMI

2 HDMI, one as network config, another as spare

VGA

1 VGA, as network config

HDD Installation

Built-in 1× 1T HDD disk (2.5") for system

Support 3HDD disks (2.5") for Video &Picture storage

Video Management

Items

DSS4004-S2

Client

PC Client

100

DSS Mobile 2

100

DSS Mobile for VDP

5000

Org. and User

Organization

10 hierarchies, 999 organizations per hierarchy

User Group

3 Levels

User

100 online users and unlimited users

Devices

(Single Point Performance )

Video

512 Channels

Onvif

64 IP，64 Channels

Access Control

100 IP，512 Doors

VDP Devices

1100 Devices

(Unit VTO no more than 100)

Facial Recognition Channels

32

ANPR Camera

32

Alarm Host

64

POS Channels

32

Time Attendance

64

Media Transmission Server

Video Input per Server

350 Mbps

Video Output per Server

350 Mbps

Record

Playback Bandwidth per Server（With Recording）

150 Mbps

Video Storage Bandwidth per Server

150 Mbps

Maximum Capacity per Storage Server

200TB

Download Task

UP to 5 per Client

Event

Number of event reception without Pic

80 per Second

Number of event reception with Pic

5 per Second

Emap

Hierarchy of Raster Map

8 Hierarchies

Photos of Raster Map

Up to 64 Photos

Map size of Raster Map

Up to 14.7MB

Channel Number

Up to 200

Personnel Management

Persons

30,000

Cards

30,000

Fingerprints

90,000

Other

Power

100V ~ 240V, 47 ~ 63Hz

Consumption

70W ~ 120W (with HDD)

Working Environment Temperature

0℃~ 45℃

Working Environment Humidity

5%~90% (non-condensation)

Storage Environment Temperature

-20℃~ ﹢70℃

Storage Environment Humidity

5% ~ 90% (non-condensation)

Working Altitude

-60m ~ 3000m

Weight

(Without Package)

6.0Kg

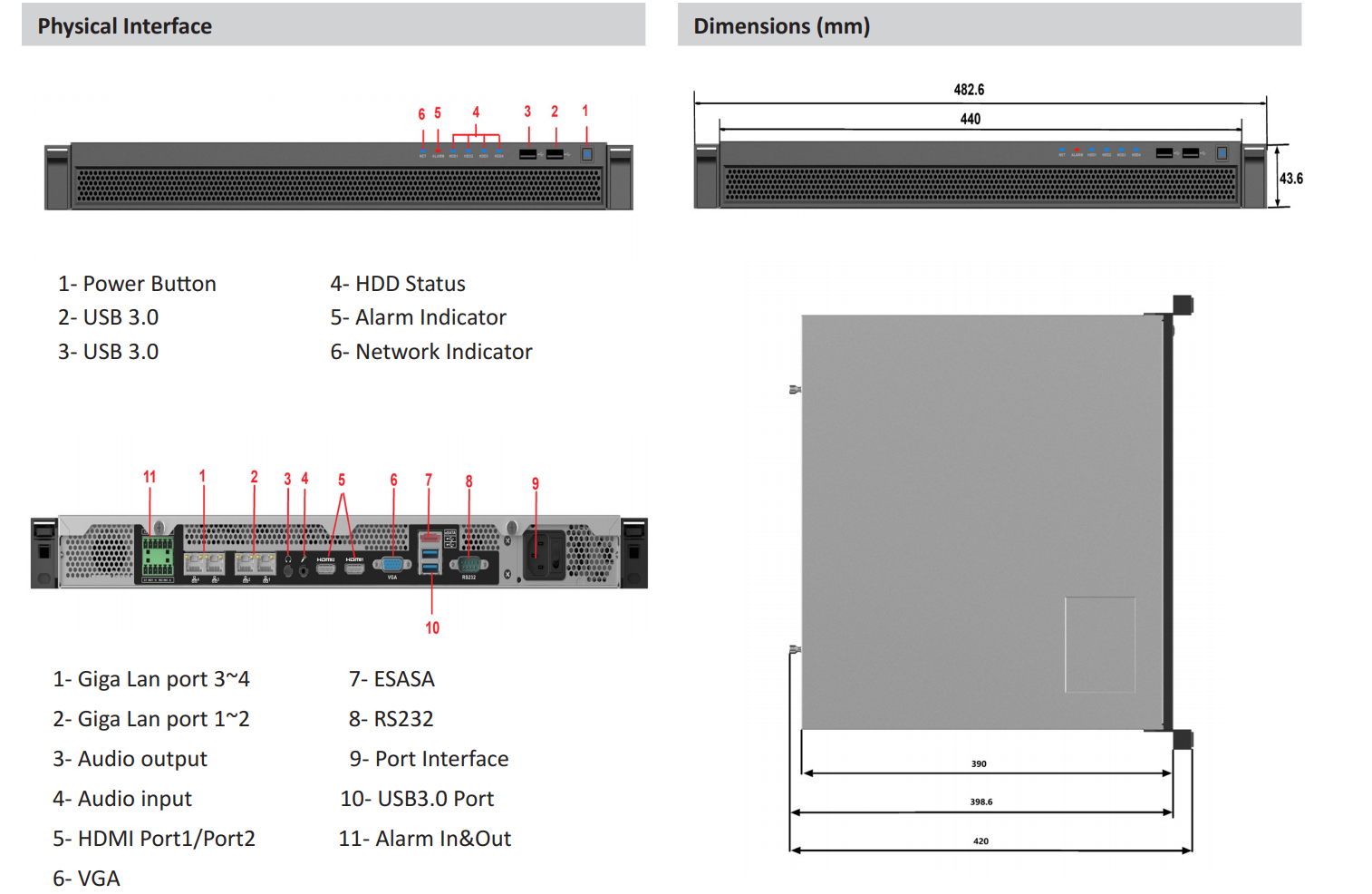

Dimension

1U, 440mm×398.6mm×43.65 mm

Installation Method

Standard 19" rack installation
