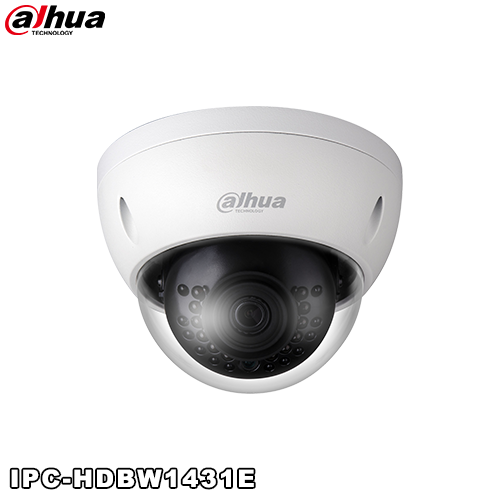

Camera supraveghere video IP 4MP, IR 30m, Dahua IPC-HDBW1431E
Camera de supraveghere video IP Dahua IPC-HDBW1431E dispune de senzor imagine 1/3" Progressive CMOS 4MP, ofera imagini si inregistrari de inalta calitate si rezolutie 4MP 2688x1520 pixeli. Proiectorul SMART IR ofera imagini pe timp de noapte pe o distanta de pana la 30m. Carcasa tip "Dome" antivandal, fabricata din metal si rezistenta la intemperii permite montarea camerei Dahua IPC-HDBW1431E atat la interior, cat si la exterior.
Camera de supraveghere video IP Dahua IPC-HDBW1431E poate fi vizualizata de la distanta atat in reteaua locala cat si prin internet cu ajutorul unui PC/Laptop, SmartPhone sau Tableta.Vizualizare si management de la distanta prin internet cu ajutorul unui PC/Laptop instaland gratuit aplicatia SmartPSS sau pe SmartPhone folosind gDMSS pentru android, iDMSS pentru iOS si DMSS pentru Windows Phone.
Caracteristici principale camera supraveghere video IP Dahua Dahua IPC-HDBW1431E:
- Senzor imagine: 1/3" 5 Megapixeli Progressive CMOS;
- Rezolutie: 20fps@4M/ 25/30fps@3M;
- Functii: WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC;
- Lentila: fixa 2.8mm (optional 3.6mm);
- Proiector IR: Smart IR 30m;
- Funcii IVS;
- Standard protectie: IP67, IK10;
- Alimentare: DC12V, PoE (802.3af).
Specificatii tehnice camera supraveghere video IP Dahua IPC-HDBW1431E:
| Camera | |
| Senzor | 1/3" 4Megapixeli Progressive CMOS |
| Pixeli efectivi | 2688(H) x 1520(V) |
| RAM/ ROM | 512MB/ 32MB |
| Sistem scanare | Progresiv |
| Viteza Shutter Electronic | Auto/ Manual, 1/3s ~ 1/100.000s |
| Iluminare minima | 0.08Lux/F2.0 (Color, 1/3s, 30IRE) 0.3Lux/F2.0 (Color, 1/30s, 30IRE) 0Lux/F2.0 IR pornit |
| Raport S/N | >50dB |
| Day/Night | Auto(ICR)/ Color/ B/W |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| White Balance | Auto/ Zi însorită/ Noapte/ Exterior/ Manual |
| Backlight Compensation | BLC/ HLC/ WDR (120dB) |
| Detectie de mișcare | On/ Off, 4 zone dreptunghiulare |
| Region of Interest | On/ Off, 4 zone |
| Zoom digital | 16x |
| Flip | 0°/ 90°/ 180°/ 270° |
| Mirror | On/ Off |
| Zone private | On/ Off, 4 zone dreptunghiulare |
| Distanta maxima IR | 24 LEDuri Smart IR, maxim 30m |
| Lentila | |
| Distanta focala | 2.8mm (optional 3.6mm) |
| Unghi vizualizare | H: 104° (87°), V: 57° (48°) |
| Diafragma | F2.0/F2.0 |
| Control Focus | Fix |
| Tip lentila | Fixa incorporata |
| DORI | |
| Detectare | 2.8mm: 63m 3.6mm: 80m |
| Observare | 2.8mm: 25m 3.6mm: 32m |
| Recunoastere | 2.8mm: 13m 3.6mm: 16m |
| Identificare | 2.8mm: 6m 3.6mm: 8m |
| Functii inteligente | |
| Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly |
| IVS | Tripwire, Intrusion |
| Video | |
| Compresie | H.265/H.264H/MJPEG(Sub Stream) |
| Smart Codec | Support H.265+/H.264+ |
| Capacitate streaming | 2 streamuri |
| Rezolutie | 4M(2688x1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240) |
| FPS | Main Stream: 4M(1 ~ 20fps)/3M (1 ~ 25/30fps) Sub Stream: D1(1 ~ 25/30fps) |
| Control Bit Rate | CBR/ VBR |
| Bit Rate | H.265: 12K~ 8448Kbps H.264: 32K ~ 10240Kbps |
| Retea | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol |
HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS |
| Max. User Access | 10 Users / 20 Users |
| General | |
| Alimentare | DC12V, PoE(IEEE 802.3af)(Class 0) |
| Consum | < 5.5W |
| Temperatura de functionare | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Grad de protectie | IP67 |
| Rezistenta antivandal | IK10 |
| Material | Metal |
| Dimensiuni | Φ109.9mm × 81mm (4.33" x 3.19") |
| Greutate | 0.34Kg |
