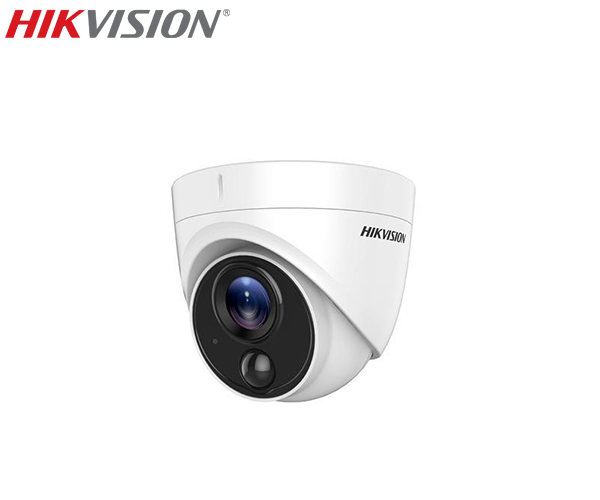

Camera supraveghere video HDTVI, 2MP, IR 20m, Hikvision DS-2CE71D0T-PIRL
HIKVISION DS-2CE71D0T-PIRL este o camera de supraveghere cu lentila fixa de 2.8 mm, unghi de vizualizare de 103°, rezolutie de 2 MP, iar proiectorul smart IR EXIR permite vizualizarea pe timp de noapte pe o distanta de pana la 20 m.
Interfaţa de transport video a camerei DS-2CE71D0T-PIRL de înaltă definiție HD-TVI este o tehnologie revoluţionară care permite utilizatorilor transmisia de imagini de înaltă rezoluţie (până la 1080p).
Camera Hikvision DS-2CE71D0T-PIRL este echipată cu detector de mișcare PIR care acceptă funcția de detectare a mișcării video si alarma vizuala cu lumina alba.
Principalele avantaje ale camerei de supraveghere Hikvision DS-2CE71D0T-PIRL sunt:
- Senzor PIR incorporat, elimina 100% alarmele false.
- Perfect integrabile in proiecte de supraveghere video rezidentiale si in retail.
- Distanta detectie PIR pana la 11 metri si unghi detectie de 110°.
- Alarma vizuala cu limina alba, posibilitate de dezactivare lumina alba.
- Distanta IR pe timp de noapte pana la 20 metri, tehnologie EXIR.
- Senzor de 2 MP Progressive Scan, rezolutie video 1920 x 1080 pixeli (1080P).
- Lentila fixa de 2.8 mm, asigura unghi vizual de 103° .
- Temperatura de functionare de la - 40°C pana la + 60°C, clasa protectie IP67.
Specificatii camera supraveghere video Hikvision DS-2CE71D0T-PIRL:
| Camera | ||
|---|---|---|
| Image Sensor: | 2.0 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Frame Rate: | PAL: 1080p@25fps NTSC: 1080p@30fps |
|
| Resolution: | 1920 (H) × 1080 (V) | |
| Min. illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
| Lens: | 2.8 mm, lentila fixa | |
| Horizontal Field of View: | 103° | |
| Lens Mount: | M12 | |
| Visual Alarm: | Yes | |
| Day& Night: | IR cut filter | |
| Angle Adjustment: | Pan: 0°to 360°, Tilt: 0°to 75°, Rotate: 0°to 360° | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
|---|---|---|
| White Light: | Alarm/Off | |
| AGC: | Yes | |
| Day/Night Mode: | Auto/Color/BW (Black and White) | |
| White Balance: | Auto/Manual | |
| Backlight Compensation: | Yes | |
| Language: | English, Chinese | |
| Function: | Brightness, Contrast, Sharpness, Saturation, DNR, Mirror | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| Operating Conditions: | 40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) | |
| Power Supply: | 12 VDC ±25% | |
| Power Consumption: | Max. 4 W | |
| Ingress Protection: | IP67 | |
| Material: | Enclosure: Plastic Main body: Metal |
|
| IR Range: | Up to 20 m | |
| PIR Range: | Angle: 110°, Range:11 m | |
| Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) | |
| Dimension: | Ø 109.8 mm × 89.75 mm (Ø 4.32" × 3.53" ) | |
| Weight: | Approx. 310 g (0.68 lb.) | |
