Camera supraveghere video HDCVI 4MP, IR 30m, Dahua HAC-HDW1400TL-A

Dahua, Supraveghere HD CVI
  • Supraveghere video HDCVI

  • Suport tehnic gratuit

  • Livrare rapida

  • Tel. 0348 88 00 21
160 Lei
HAC-HDW1400TL-A
+
Suna-ma!

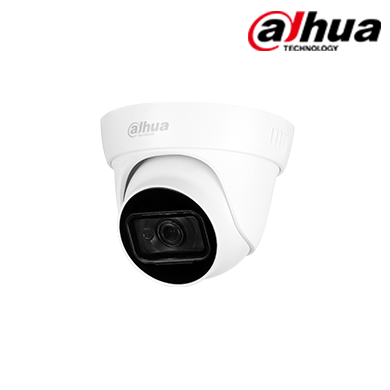

Camera supraveghere video HDCVI 4MP, IR 30m, Dahua HAC-HDW1400TL-A

Camera supraveghere video Dahua HAC-HDW1400TL-A cu protocol HDCVI, microfon incorporat si functie Eyeball, ofera imagini de inalta calitate si rezolutie 4MP (2560x1440 pixeli), dispune de lentila fixa 3.6 mm (optional 2.8 mm) pentru unghi larg de vizualizare iar proiectorul SmartIR ofera imagini pe timp de noapte de pana la 30m.

Dahua HAC-HDW1400TL-A cu carcasa de plastic tip Dome conceputa pentru montaj aplicat pe perete, tavan sau stalp.

Camera de supraveghere video HAC-HDW400TL-A se utilizeaza in combinatie cu DVR-urile HDCVI de la Dahua si pot fi vizualizate de la distanta atat in reteaua locala cat si prin internet cu ajutorul unui PC/Laptop, SmartPhone sau Tableta.

Caracteristici principale camera supraveghere video HDCVI Dahua HAC-HDW1400TL-A:

  • Senzor imagine: 1/2.7" 4MP CMOS;
  • Rezolutie: 4MP (2560×1440);
  • Proiector IR: Smart IR 30m;
  • Lentila fixa 3.6 mm (optional 2.8 mm);
  • Microfon: da;
  • Alimentare: 12V ±30% DC;
  • Consum: Maxim 4W (12V DC, IR pornit) ;
  • Grad protectie: IP67;
  • Dimensiuni: 97mm x 85.8mm;
  • Greutate: 0.22 kg.

Specificatii tehnice camera supraveghere video HDCVI Dahua HAC-HDW1400TL-A:

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

2560 (H)×1440 (V), 4MP

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

Minimum Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

IR Distance

30m (98.42ft)

IR On/Off Control

Auto; manual

IR LEDs Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8mm; 3.6mm

Max. Aperture

F2.0/F2.0

Angle of View

2.8mm: 115.0°×97.0°×52.0° (diagonal×horizontal×vertical)
3.6mm: 89.5°×76.4°×41.6° (diagonal×horizontal×vertical)

Iris Type

Fixed iris

Close Focus Distance

0.8m (2.62ft)/1.4m (4.59ft)

DORI Distance

2.8mm:D:56m(184ft);O:22m(72ft);R:11m(36ft),I:6m(20ft);

3.6mm:D:80m(262ft),O:32m(105ft),R:16m(52ft),I:8m(26ft);

Video

Video Frame Rate

CVI:
PAL: 4M@25fp; 1080P@25fp
NTSC: 4M@30fp; 1080P@30fp
AHD: PAL: 4M@25fp
NTSC: 4M@30fp
TVI: PAL: 4M@25fp
NTSC: 4M@30fp
CVBS: PAL: 960H
NTSC: 960H

Resolution

4M (2560×1440); 1080P (1920×1080); 960H (960× 576/960×480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 Area, Rectangle)

Certification

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Port

Built-in mic (-A)

Power

Power Supply

12V±30% DC

Power Consumption

Max 4W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to +140°F); <95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to +140°F); <95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Inner core: metal+plastic; cover: plastic

Dimensions

Φ97.0mm×85.8mm (Φ3.82"×3.38")

Net Weight

0.22kg (0.49lb)

Gross Weight

0.28kg (0.62lb)

Disponibilitate:
3-5 zile

Camere de supraveghere

Tip supraveghere video :
  • Supraveghere HD CVI
Rezolutie :
  • 2688x1520 (4MP)
Infrarosu ( IR ) :
  • 30 m
Lentila :
  • Lentila Fixa
Audio:
  • Audio incorporat

Nici o postare găsită

Posteaza recenzie

Fisa tehnica Dahua HAC-HDW1400TL-A (DH-HAC-HDW1400TL_-A_.pdf, 549 Kb) [Download]

Ghid de instalare Dahua HAC-HDW1400TL-A (HDCVI-Eyeball-Camera-Quick-InstallationGuide_V1.0.02.pdf, 1,014 Kb) [Download]
