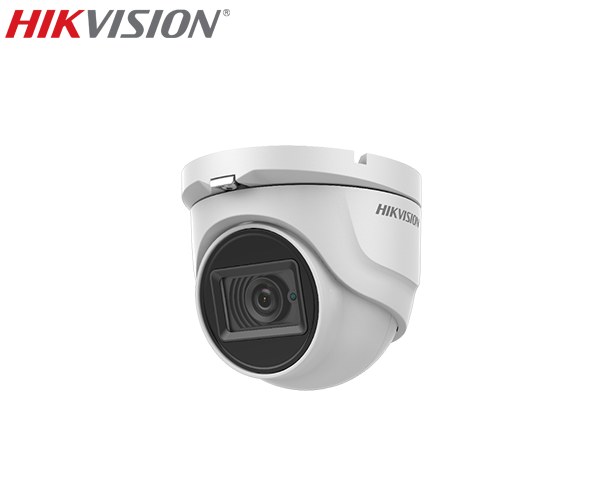

Camera supraveghere video cu audio, 5MP, IR 30m, Hikvision DS-2CE76H8T-ITMF
Camera de supraveghere video Hikvision DS-2CE76H8T-ITMF ofera imagini de inalta calitate si rezolutie 5 MP ( 2560 x 1944 pixeli), dispune de lentila fixa 2.8mm pentru unghi larg de vizualizare de 98°, iar proiectorul IR ofera imagini pe timp de noapte de pana la 30m.
Hikvision DS-2CE76H8T-ITMF cu carcasa metalica tip dome conceputa pentru montaj aplicat pe perete sau tavan.
Specificatii tehnice camera supraveghere video Hikvision DS-2CE76H8T-ITMF:
| Camera | ||
|---|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Resolution: | 2560 (H) × 1944 (V) | |
| Min. Illumination: | Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
|
| Lens: | 2.8 mm lentila fixa | |
| Horizontal Field of View: | 98° | |
| Lens Mount: | M12 | |
| Day & Night: | IR cut filter | |
| Angle Adjustment (Bracket): | Pan: 0°to 360°, Tilt:0°to 75°, Rotate: 0°to 360° | |
| Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC |
|
| WDR (Wide Dynamic Range): | ≥ 130 dB | |
| Video Output: | 1 HD analog output | |
| Switch Button: | Switchable TVI/AHD/CVI/CVBS | |
| Menu | ||
|---|---|---|
| AGC: | Da | |
| Day/Night Mode: | Auto/Color/BW (Black and White) | |
| White Balance: | Auto/Manual | |
| BLC (Backlight Compensation): | Da | |
| WDR: | Da | |
| 3D DNR: | Level 1 to 9 | |
| Privacy Mask: | 4 programmable privacy masks | |
| Motion Detection: | 4 programmable areas | |
| Language: | English | |
| Function: | Brightness, Sharpness, 3D DNR, Mirror, Smart IR | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) | |
| Power Supply: | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
|
| Power Consumption: | Max. 5.8 W | |
| Protection Level: | IP67 | |
| Material: | Metal | |
| IR Range: | Up to 30 m | |
| Communication: | Up the coax, Protocol: HIKVISION-C (TVI output) | |
| Dimensions: | 90 mm × 79.37 mm (3.54" × 3.12") | |
| Weight: | Approx. 300 g (0.66 lb.) | |
Disponibilitate:
3-5 zile
No reviews found
