Camera supraveghere video Hikvision DS-2CE56H0T-ITZF, 5MP, IR 40m

Hikvision, Supraveghere Analog, Supraveghere HD CVI, Supraveghere AHD, Supraveghere HD TVI
Scrie o recenzie
DS-2CE56H0T-ITZF

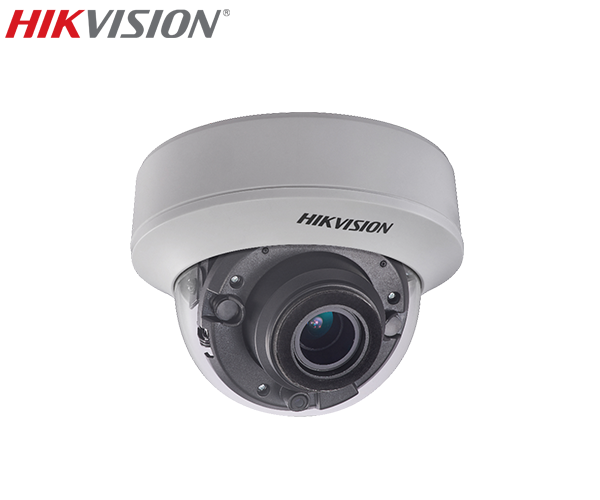

Camera supraveghere video, 5MP, IR 40m, Hikvision DS-2CE56H0T-ITZF

Hikvision DS-2CE56H0T-ITZF este o camera de supraveghere video ALL IN ONE, tip dome de interior cu tehnologii comutabile (TVI/AHD/CVI/CVBS). Aceasta camera este echipata cu un senzor de 5 MP avand o rezolutie video de 2560 x 1944 pixeli (5MP). Lentila varifocala de 2.7 - 13.5 mm va pune la dispozitie un camp vizual de 95.7° - 29.1° pentru supravegherea si monitorizarea obiectivelor. Distanta IR EXIR pana la 40 metri, IR Cut Filter.

Specificatii tehnice camera supraveghere video Hikvision DS-2CE56H0T-ITZF :

Camera
Image Sensor:   5 MP CMOS
Resolution:   2560 (H) × 1944 (V)
Min. Illumination:   Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time:   PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens:    2.7 mm - 12 mm, lentila varifocala motorizata
Unghi de vizualizare:    95.7° ~ 29.1°
Lens Mount:   Φ14
Angle Adjustment:   Pan: 0° to 340°, Tilt:0° to 75°, Rotate: 0° to 355°
Day& Night:   IR cut filter
Frame Rate:   PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Video Output:   1 HD analog output
Switch Button:   TVI/AHD/CVI/CVBS
Synchronization:   Internal synchronization
Menu
AGC:   Support
D/N Mode:   Auto/Color/BW (Black and White)
White Balance:   ATW/MWB
BLC:   Support
DWDR (Digital Wide Dynamic Range):   Support
Functions:   Brightness, Sharpness, DNR, Mirror, Smart IR
General
Operating Conditions:   -40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply:   12 VDC ±15%, 24 VAC ±15%
Power Consumption:   Max. 4.4 W
Material:   Plastic
IR Range:   Up to 40m
Communication:   Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions:   Ø 136 mm × 101.9 mm ( Ø 5.35" × 4.01")
Weight:   410 g (0.90 lb.)
Disponibilitate:
3-5 zile

Camere de supraveghere

Tip supraveghere video
:
  • Supraveghere Analog
  • Supraveghere HD CVI
  • Supraveghere AHD
  • Supraveghere HD TVI
Rezolutie
:
  • 2592 x 1944 (5MP)
Infrarosu ( IR )
:
  • 40 m
Lentila
:
  • Lentila Varifocala
  • Zoom Motorizat

Fisa tehnica camera de supraveghere Hikvision DS-2CE56H0T-ITZF (Datasheet_of_DS-2CE56H0T-_A_ITZF_20180116.pdf, 979 Kb) [Download]

No reviews found
