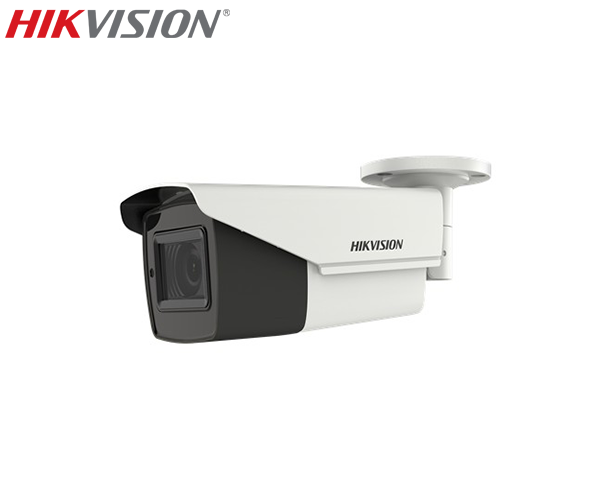

Camera supraveghere video, 5MP, IR 40m, Hikvision DS-2CE16H0T-IT3ZE
HIKVISION DS-2CE16H0T-IT3ZE este o camera de supraveghere video Turbo HD, ce are o rezolutie maxima de 5 Megapixeli, oferita de un senzor de imagine 5 MP CMOS Image Sensor.
Camera de supraveghere video Hikvision DS-2CE16H0T-IT3ZE poate oferi imagini pe timpul noptii sau in conditii de iluminare scazuta, de la o distanta de 40m.
Camera HIKVISION DS-2CE16H0T-IT3ZE are o lentila varifocala motorizata, adica o lentila care permite reglarea unghiului de la distanta, din inregistrator (DVR/NVR), din interfata web, din softul de monitorizare sau chiar de pe telefonul mobil. E ideala pentru supravegherea unor zone dinamice, unde este nevoie de schimbarea unghiului de vizualizare destul de des. Distanta focala poate fi reglata intre 2.7 mm si 13.5 mm, oferind un unghi de vizualizare orizontal intre 95.7° si 29.1°.
In general, camerele de supraveghere video cu infrarosu au ca specificatie distanta maxima aproximativa la care iluminatorul poate vizualiza in infrarosu, insa daca o persoana se afla la o distanta mult mai mica decat aceasta, exista riscul ca imaginea sa fie suprasaturata (foarte alba). Astfel, pentru a elimina acesta situatie, camera de supraveghere video HIKVISION DS-2CE16H0T-IT3ZE, este dotata cu functia Infrarosu Inteligent (Smart IR).
Specificatii tehnice camera de supraveghere video Hikvision DS-2CE16H0T-IT3ZE :
| Camera | ||
|---|---|---|
| Image Sensor: | 5 MP CMOS image sensor | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s | |
| Lens: | 2.7 mm ~13.5 mm, lentila varifocala motorizata | |
| Horizontal Field Of View: | 95.7° ~ 29.1° | |
| Lens Mount: | Φ 14 | |
| Angle Adjustment: | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Frame Rate: | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
|
| Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Video Output: | 1 HD analog output | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
|---|---|---|
| AGC: | Support | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| White Balance: | ATW/MWB | |
| BLC: | Support | |
| DWDR (Digital Wide Dynamic Range): | Support | |
| Functions: | Brightness, Sharpness, DNR, Mirror, Smart IR | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC ±25%, PoC.at | |
| Power Consumption: | Max. 7.8 W | |
| Weather Proof: | IP67 | |
| Material: | Front cover: Metal Main body: Plastic Bracket: Metal |
|
| IR Range: | Up to 40m | |
| Communication: | Up the coax, Protocol: HIKVISION-C (TVI output) | |
| Dimension: | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") | |
| Weight: | Approx. 685 g (1.51 lb.) | |
