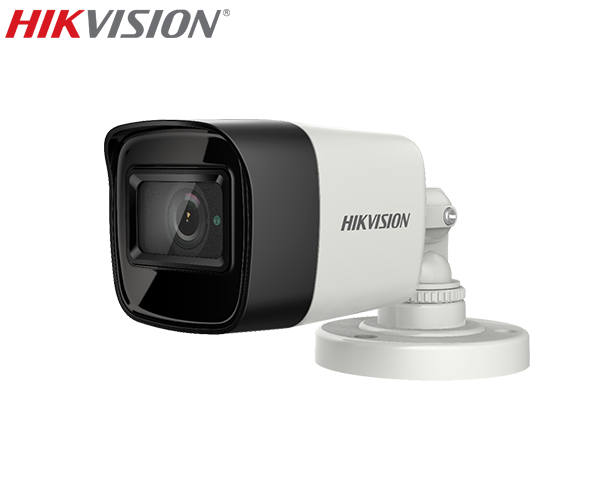

Camera supraveghere TurboHD, 5MP, IR 30m, Hikvision DS-2CE16H8T-ITF
Camera de supraveghere video Hikvision DS-2CE16H8T-ITF cu protocol Turbo HD este compatibila cu tehnologia HD (Turbo HD/HDTVI, HDCVI, AHD) dar si cu rezolutia analogica de rezolutie standard (CVBS) si ofera imagini de inalta calitate si rezolutie 5MP (2560 × 1944 pixeli), dispune de lentila fixa 2.8mm pentru unghi larg de vizualizare de 98°, iar proiectorul IR ofera imagini pe timp de noapte de pana la 30m.
Specificatii tehnice camera supraveghere video Hikvision DS-2CE16H8T-ITF:
| Camera | ||
|---|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Resolution: | 2560 (H) × 1944 (V) | |
| Shutter Time: | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
|
| Lens: | 2.8mm, lentila fixa | |
| Unghi de vizualizare: | 98° | |
| Lens Mount: | M12 | |
| Angle Adjustment (Bracket): | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° | |
| Day& Night: | IR cut filter | |
| WDR (Wide Dynamic Range): | ≥ 130dB | |
| Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC |
|
| Synchronization: | Internal synchronization | |
| Video Output: |
1 HD analog output |
|
| Switch Button: | Comutabil TVI/AHD/CVI/CVBS | |
| Menu | ||
|---|---|---|
| AGC | Da | |
| Day/Night Mode: | Auto/Color/BW (Black and White) | |
| White Balance: | Auto/Manual | |
| BLC (Backlight Compensation): | Da | |
| WDR: | Da | |
| 3D DNR: | Level 1 to 9 | |
| Privacy Mask: | 4 programmable privacy masks | |
| Motion Detection: | 4 programmable areas | |
| Language: | English | |
| Functions: | Brightness, Sharpness, 3D DNR, Mirror, Smart IR | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
|
| Consum: | Max. 5.8 W | |
| Weather Proof: | IP67 | |
| Material: | Metal | |
| IR Range: | Up to 30m | |
| Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) | |
| Dimensions: | 58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42") | |
| Weight: | Approx. 320 g (0.71 lb.) | |
