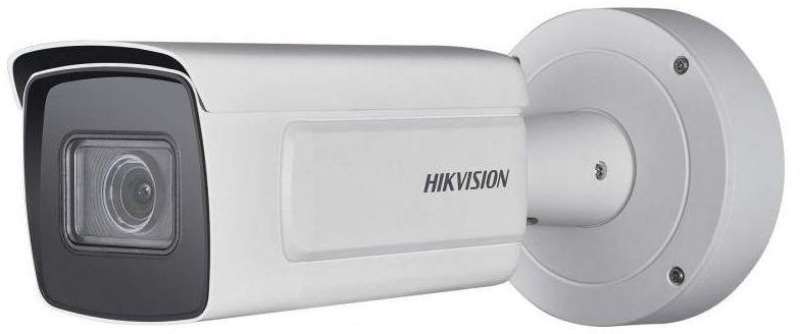

Camera de supraveghere video IP, LPR, 2 MP,IR 100m Hikvision DS-2CD7A26G0/P-IZHS

3,367 Lei
DS-2CD7A26G0/P-IZHS 8-32MM
+
Suna-ma!

Camera de supraveghere video IP, LPR, 2 MP,IR 100m Hikvision DS-2CD7A26G0/P-IZHS

Camera de supraveghere video IP profesionala Hikvision DS-2CD7A26G0/P-IZHS este solutia ideala pentru recunoasterea placutelor de inmatriculare. Are functie de control acces.

Cu o rezoluție de 2 MP, algoritm ANPR încorporat și funcție acces control integrată, noul model DS-2CD7A26G0/P-IZHS permite acces pe baza recunoașterii plăcuțelor de înmatriculare, fiind o variantă ideală în cazul parcărilor.

Funcția WDR și smart IR-ul de pana la 100 m  ale noului model asigură imagini îmbunătățite în condiții cu puternice contraste de lumină sau cu iluminare scăzută avand senzor DarkFighter. Camera recunoaște plăcuțele de înmatriculare și oferă acces pentru vehiculele cu o viteză de până la 60km/oră.

DS-2CD7A26G0/P-IZHS  dispune de lentilă motorizata de 8 ~ 32 mm, oferind astfel avantajul reglării unghiului de vizualizare în funcție de specificului proiectului.

Caracteristici principale Hikvision DS-2CD7A26G0/P-IZHS

  • Senzor performant  1/1.8” Progressive Scan CMOS
  • Rezolutie 1080P(1920x1080) 60fps
  • Compresie H.265, H.265+, H.264, H.264+
  • Recunoaștere plăcuțe de înmatriculare;
  • Functie control acces;
  • Lentila motorizata 8mm ~ 32mm;
  • Proiector IR 100m;
  • Micro SD maxim 256GB;
  • Standard protectie: IP67 IK10

Specificatii tehnice Hikvision DS-2CD7A26G0/P-IZHS

  • Camera
  • Image Sensor1/1.8ʺ Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range140 dB
  • Day & NightIR cut filter
  • Angle AdjustmentBracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • FocusAuto, semi auto, manual
  • Lens Type2.8 to 12 mm and 8 to 32 mm optional
  • FOV2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
  • Aperture2.8 to 12 mm: F1.2 8 to 32 mm: F1.6
  • Lens MountIntegrated
  • Illuminator
  • IR Range2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
  • Wavelength850 nm
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream support
  • H.265+Main stream support
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking
  • Audio
  • Environment Noise FilteringNo
  • Audio Sampling RateNo
  • Audio CompressionNo
  • Audio Bit RateNo
  • Network
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
  • Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
  • Web BrowserPlug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
  • Target CroppingYes
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • AudioNo
  • Alarm2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
  • Video Output1Vp-p composite output (75 Ω/CVBS), only for adjustment
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Communication Interface1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Heater-H: yes
  • Smart Feature-Set
  • CountingNo
  • Exception DetectionScene change detection, defocus detection
  • Intelligent (Deep Learning Algorithm)
  • Premier ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • AccuracyCapture rate > 98% Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
  • No License Plate DetectionYes
  • Motorcycle LPRYes (only applicable to checkpoint)
  • Whitelist And BlacklistMax. 10,000 records
  • General
  • Firmware Version5.5.60
  • General FunctionOne-key reset, anti-flicker, five streams and custom stream, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F) Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 20%, two-core terminal block;PoE (802.3at, class 4)
  • Power Consumption And Current-IZS: 12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A -IZHS: 12 VDC, 1.4 A, max. 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
  • Camera DimensionCamera: Φ140 × 351 mm (Φ5.5″ × 13.8″) With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
  • Camera WeightCamera: approx. 2.5 kg (5.51 lb.) With package: approx. 2.75 kg (6.06 lb.)
  • Approval
  • ProtectionIP67, IK10

Fisa tehnica (Fisa_tehnica_Camera_supraveghere_IP_HIKVISION_DS-2CD7A26G0-P-IZHS_2_MP_IR_50_m_2.8-12_mm.pdf, 871 Kb) [Download]
