ITC215-PW4I-IRLZF0550

Camera supraveghere video cu functie LPR, ANPR, Dahua ITC215-PW4I-IRLZF0550

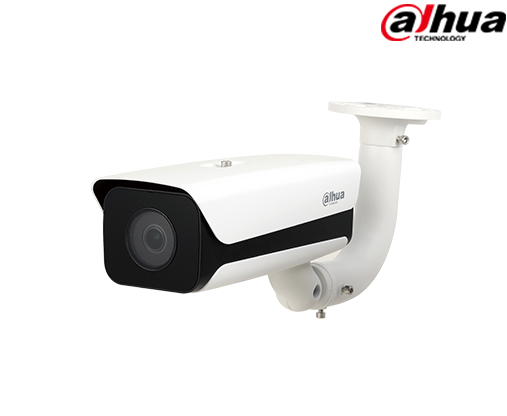

Camera de supraveghere video IP profesionala Dahua ITC215-PW4I-IRLZF0550 este solutia ideala pentru recunoasterea placutelor de inmatriculare. Are functie de control acces. Poate detecta 11 dimensiuni de vehicule, 11 culori ale ale vehiculelor.

Cu o rezoluție de 2 MP, algoritm ANPR încorporat și funcție acces control integrată, noul model ITC215-PW4I-IRLZF0550 permite acces pe baza recunoașterii plăcuțelor de înmatriculare, fiind o variantă ideală în cazul parcărilor.

Funcția WDR și smart IR-ul de pana la 12 m  ale noului model asigură imagini îmbunătățite în condiții cu puternice contraste de lumină sau cu iluminare scăzută. Camera recunoaște plăcuțele de înmatriculare și oferă acces pentru vehiculele cu o viteză de până la 60km/oră.







ITC215-PW4I-IRLZF0550 dispune de lentilă motorizata de 5 ~ 50mm, oferind astfel avantajul reglării unghiului de vizualizare în funcție de specificului proiectului.

Caracteristici principale Dahua ITC215-PW4I-IRLZF0550:

  • Senzor performant 1/2.8" 2 MP CMOS;
  • Rezolutie 1080P(1920x1080) / 720P(1280x720) / D1(704x576);
  • Compresie H.265/H.264M/H.264H/H.264B;
  • Recunoaștere plăcuțe de înmatriculare;
  • Functie control acces;
  • Detecteaza 11 dimensiuni ale vehiculelor, 11 culori ale vehiculelor;
  • Lentila motorizata 2.7mm ~ 13.5mm;
  • Proiector IR 12m;
  • Micro SD maxim 64GB;
  • Standard protectie: IP67.

Specificatii tehnice camera LPR, ANPR Dahua ITC215-PW4I-IRLZF0550:

Camera

Image Sensor

1/2.8 inch 2 Megapixel CMOS

Effective Pixels

2MP, 1920(H) x 1080(V)

Scanning System

Progressive

Minimum Illumination

0. 005Lux/F1.3 (Color),0Lux/F1.3(IR on)

Electronic Shutter Speed

1/50~1/10000

IR Light Distance

Up to 12M

IR light LEDs

6

Lens

Lens Type

Motorized/ Auto Iris(DC)

Mount Type

Board-in Type

Focal Length

2.7mm~13.5mm

Max Aperture

F1.3

Angle of View

H: 119˚~ 32˚ V:65 ˚ ~18˚

Focus control

Auto

ANPR Distance

3-8M

Intelligence

LPR Function

Embedded with Deep learning LPR engine

Vehicle Detection

Supports vehicle video detection with high detection rate; supports vehicle direction detection

Vehicle data structuring

license plate recognition, vehicle size, vehicle color detection and etc.

Vehicle size detection

Supports 11 vehicle sizes detection:large bus, heavy truck, medium truck, sedan, minivan, light truck, SUV, MPV, medium bus, pick-up and minicar.

Vehicle color detection

Supports 11 colors detection(daytime):white, black, blue, red, yellow, green, pinkish purple, gray, brown, orange and silver.

Detection model

Supports Video detection or loop detection

Snapshot

Overview and cutout of plate for picture

OSD overlay

Time, place,plate number, etc.

White list

10000 records database inside the camera

Barrier control

Relay out to control the barrier

Interface

Audio Interface

1 Input/1 Output

RS485

2

Alarm

3/3 channel In/Out

Video

Compression

H.265/H.264M/H.264H/H.264B

Resolution

1080P(1920x1080) / 720P(1280x720) / D1(704x576)

Frame Rate

Main Stream: 1080P(1 ~ 25/30fps)

Sub Stream: 720P/ D1 (1 ~ 25/30fps)

Bit Rate Control

CBR, VBR

Bit Rate

32 ~ 16384 Kbps

Day/Night

Auto(ICR) / Color / B/W

Dual Stream

Support, Main stream and sub stream

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Network

Ethernet

RJ-45 (100/1000Base-T)

Interoperability

CGI, SDK, Onvif

Max. User Access

20

Web Viewer

IE8,IE9,IE10,IE11,Chrome V33, V41

Protocol

IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS

Edge Storage

Micro SD, Max 64GB Status Display Local PC for Instant Recording

Management Software

PMS

Certifications

Certifications

CE

FCC

Environmental

Operating Conditions

-30°C~+65°C, Less than 90% RH

Ingress Protection

IP67

Construction

Dimensions(no bracket)

297mm × 124mm× 108mm

Dimension(with bracket)

482mm × 124mm× 196mm

Net Weight

1.9kg(no bracket)/3.3kg(with bracket)

Eelectrical

Power Supply

DC12V, PoE +(802.3at)

Power Consumption

<24W (with white light on, motorized lens working)



Disponibilitate:
La comanda

Manual de utilizare Dahua ITC215-PW4I-IRLZF0550 (Deep-Learning-Access-ANPR-Camera-Users-Manual-V-1.0.0-.pdf, 6,164 Kb) [Download]
