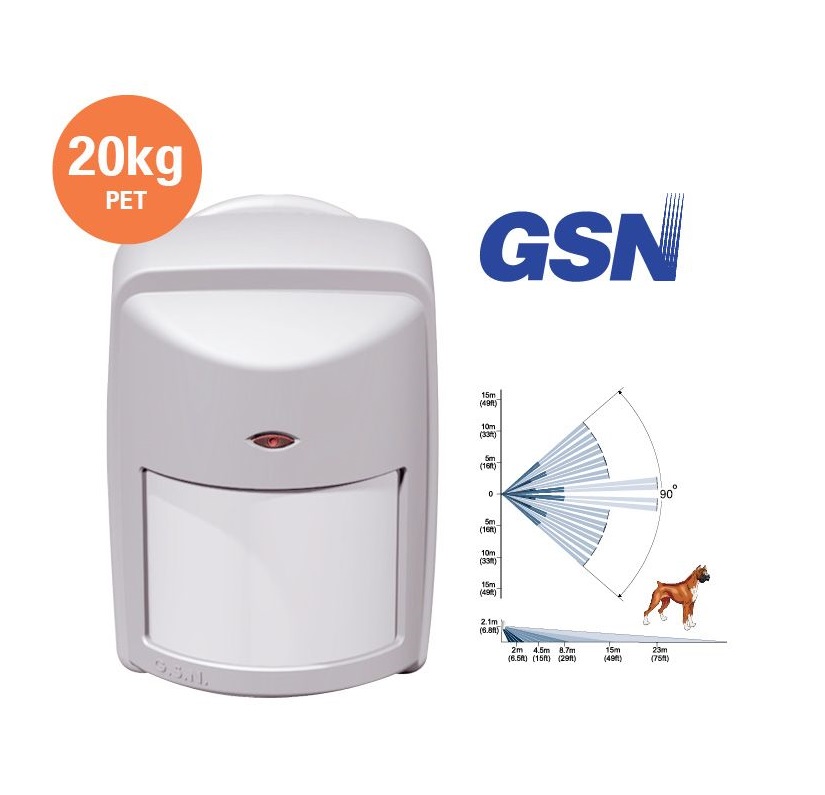

Detector de miscare PIR, GSN Patrol 201 PET

Detector de miscare PIR, GSN Patrol 201 PET

Detector de miscare PIR pentru interior, imun la animale de companie de pana la 20 kg si inaltimea de 1m cu posibilitate de ajustare usoara si fina a sensibilitatii. Lentila Fresnel ce protejeaza detectorul de alarme false iar etansarea ermetica a senzorului protejeaza detectorul de curentii de aer si insecte mici, eliminand astfel una dintre principalele cauze ale alarmelor false.

• Raza de acoperire - 15m x 90 °.
• Protectie completa împotriva interferentelor de frecventa radio (RFI).
• Releul detectorului este un releu optoelectronic cu un numar nelimitat de cicluri de functionare.
• Detectorul ramane operațional la temperaturi de pana la -30 ° C.
• Suport de prindere inclus.

Specificatii tehnice detector de miscare PIR, GSN Patrol-201 PET:

• Detection speed range: 0.3 - 3.0m/sec;
• Power input: 8.5 - 16VDC;
• Current consumption: In stand-by mode: 11.2mA; In alarm mode with LED on: 9.7mA; In alarm mode with LED off: 6.8mA;
• Pulse mode: automatic /2;
• Alarm period: 3sec;
• Coverage range: 15meters;
• Relay output: 60V; 120mA; 16Ω;
• Warm up period: 40sec;
• Reset time: 5±1sec;
• Light immunity: no less than 10000Lux;
• Opening protection: TAMPER SWITCH;
• Operating temperature range: -30ºC +50ºC;
• Storage temperature range: -40ºC +80ºC;
• RFI immunity: 30V/m at a frequency range 10MHz - 1000MHz;
• EMI immunity: 50000V;
• Dimensions: 93mm x 66mm x 46mm;
• Weight: 94gr.
