Camera supraveghere video IP termica hibrida, Dahua TPC-BF2120

8,580 Lei
TPC-BF2120
+
Suna-ma!

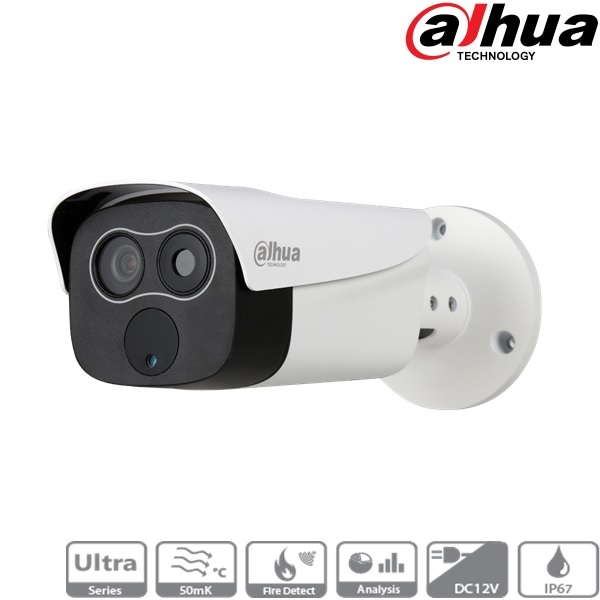

Camera supraveghere video IP termica hibrida, Dahua TPC-BF2120

Dahua TPC-BF2120 este o camera termica de supraveghere video cu spectru cu doua canale, lampa infrarosu externa si carcasa de mici dimensiuni: 238.6mm x 90.4mm x 90.4mm, grad de protectie IP67 ce asigura protectie la apa, praf si alti contaminanti.

Camera cu termoviziune Dahua TPC-BF2120 recent lansata combina o camera termica pentru vizualizare pe intuneric total si o camera optica cu senzor Sony STARVIS pentru a obtine imagini colorate de inaltă rezolutie, iar pe timp de noapte proiectorul IR se activeaza pentru a nu pierde niciun detaliu din cauza iluminarii scazute.

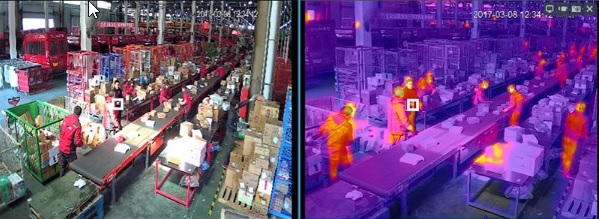

Folosind tehnologia de imagine termica, camera este capabila sa descopere flacarile ascunse intr-un mod rapid si eficient, lucru greu de realizat cu sistemele de securitate obisnuite. Aceasta localizeaza cu precizie focul, permitand astfel un raspuns rapid pentru a evita extinderea acestuia.

Camera cu termoviziune Dahua TPC-BF2120 poate fi utilizata pentru a forma un sistem perimetral de detectie a intrusilor, care se comporta ca o bariera virtuala, utilizand tehnologia termica. Cand este instalată la inaltimea recomandata de 5 metri si cu un camp de vizualizare de 56°×44°, o camera acopera o suprafață de 29 de metri lungime. Indiferent daca este zi sau noapte, atata timp cat cineva patrunde in zona vizata, camera va trimite un avertisment centrului de control. Este astfel o alegere ideala pentru aplicatii cum sunt parcurile rezidentiale, parcuri industriale, gradini sau spatii de parcare mari.

Camera de supraveghere video IP termica suporta multiple functii inteligente cum ar fi:

  • ROI (Region of Interest);
  • PIP (Pincture-in-Picture);
  • Detectie barieră virtuala;
  • Obiect abandonat/lipsa;
  • Avertizare la pericol de incendiu;
  • Livrarea mesajelor de alarma.

Mini camera termica Dahua TPC-BF2120 este combinatia perfecta intre functii inteligente, accesibilitate, rentabilitate si eficienta ridicata, pentru aplicatii de supraveghere video mici si mijlocii. Suportand protocolul ONVIF, modelul camera este compatibil cu platformele VMS de pe piata (Genetec, Milestone), precum si cu DSSul Dahua, aceasta se conecteaza folosind o singura adresa IP.

Specificatii tehnice camera supraveghere video IP termica Dahua TPC-BF2120:

Thermal Camera

Image Sensor

Uncooled VOx Microbolometer

Effective Pixels

160(H)x120(V)

Pixel Size

12um

Thermal Sensitivity (NETD)

<50mK@f/1.1

Spectral Range

7~14um

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

14(Whitehot/Blackhot/Ironrow/Icefire/

Fusion/Rainbow/Globow/Iconbow1/

Iconbow2 .etc)

Thermal Lens

Lens Type

Fixed

Focus Control

Athermalized, Focus-free

Focal Length

1mm

Effective Distance①

Man(1.8m*0.5m)

D②: 60m

R③: 20m

I ④: 10m

Effective Distance

Vehicle(2.3m*2.3m)

D: 200m

R: 60m

I: 30m

Angle of View

H: 56°

V: 44°

Visible Camera

Image Sensor

1/2.8" 2M CMOS

Effective Pixels

1944(H)x1092(V)

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

Color: 0.005Lux@F1.8; B/W: 0.0005Lux@F1.8; 0Lux (IR on)

IR Distance

35m

IR On/Off Control

Auto/Manual

IR LEDs

1

Visible Lens

Focal Length

4mm

Max Aperture

F1.8

Angle of View

H: 74.8°

V: 44.7°

Video

Compression

H.264/MJPEG

Frame Rate

Main Stream:

Thermal: 1280*960 (default)/720P@1~25/30fps

Visible: 1080P (default)/720P@1~25/30fps

Sub Stream:

Thermal: 640*480 (default)/ 320*240@1~25/30fps

Visible: CIF(default)/D1@1~25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 640 ~ 8192Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR

White Balance

Auto, Manual

Noise Reduction

Ultral DNR

Motion Detetion

Off/On (4 zone, Rectangle)

Region of Interest

Off/On (4 zone)

Electronic Image Stabilization

(EIS)

NA

Defog

Off/On

Flip

180°

Mirror

Off/On

Privacy Masking

Off/On (4 area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC

Intelligence

IVS

Tripwire, Intrusion, Object Abandon/Missing

Advanced Intelligent Functions

Fire detection & alarm, Image Fusion

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Interoperability

ONVIF Profile S & G, PSIA, CGI

Streaming Method

Unicast/Multicast

Max. User Access

10 Users/20 Users

Edge Storage

micro SD (128GB) Memory status display (Normal/Error/Active/ Formatting/Lock),

NAS (Network Attached Storage), Local PC for instant recording

Web Viewer

Management Software

Smart PSS, DSS

Smart Phone

Android, IOS

Certifications

Certification

CE (EN 60950:2000) FCC (FCC Part 15 SubpartB )

Interface

Video Interface

1.0Vp-p/75Ω, PAL/NTSC (HDCVI Optional)

Audio Interface

In/Out 1/1

RS485

Support

Alarm

2/1 In/Out

Electrical

Power Supply

DC 12V/PoE

Power Consumption

12W (IR on), 9W(IR off)

Environmental

Operating Condition

-30°C ~ +55°C (-22°F ~ +131°F)/Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Strorage Conditions

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

Ingress Protection

IP67

Construction

Casing

Metal

Dimensions

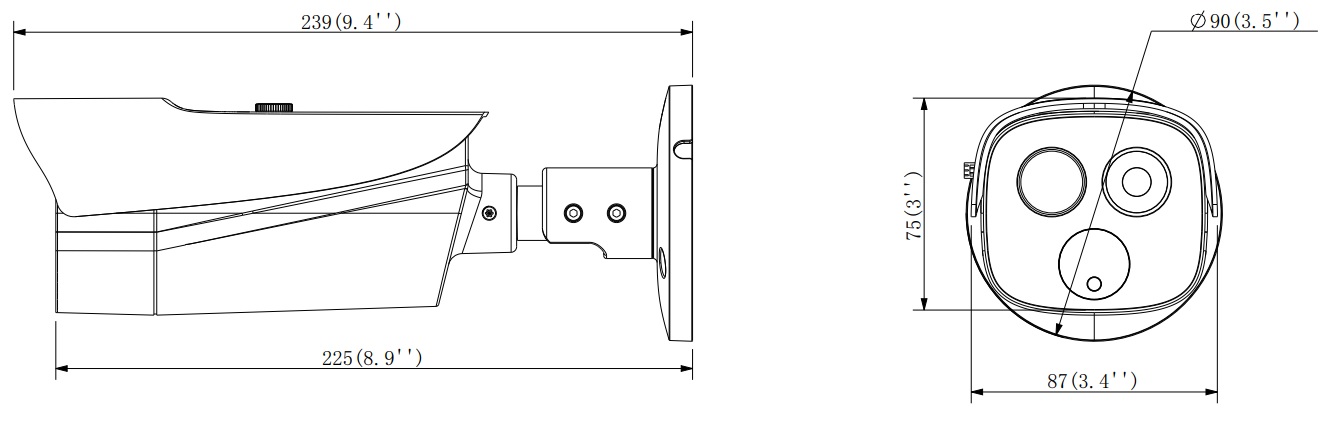

238.6mm × 90.4mm× 90.4mm (9.39" x 3.56" x 3.56")

(With bracket)

Weight

1Kg
