​Tester CCTV 3,5" cu WiFi integrat pentru camere IP si Analogice, T-1600

980 Lei
T-1600
+
Suna-ma!

Tester CCTV 3,5" cu WiFi integrat pentru camere IP si Analogice, T-1600

T-1600 este un dispozitiv tip Tester CCTV pentru camere de supraveghere video analogice SD (Standard resolution) dar si camere de supraveghere video cu protocol TCP/IP atat prin cablu cat si Wireless (fara fir), testerul dispune de modul WiFi incorporat.

Ecranul TFT de 3,5 inci dispune de rezolutie 320x240 si touch-screen capacitiv pentru o utilizare usoara si practica.

*Testerele video CCTV sunt instrumente indispensabile la punerea in functiune a oricarei retele de supraveghere video.
Deoarece in ultimii ani sistemele CCTV au evoluat prin aparitia tehnologiilor analogice HD (HD-TVI, HD-CVI, AHD) si cresterea popularitatii sistemelor IP HD, necesitatile si implicit numarul de instrumente necesare punerii in functiune a unei retele CCTV au crescut si ele, utilizarea devenind asftel incomoda.

Caracteristici tehnice Tester CCTV T-1600:

  • Ecran TFT 3.5" (320x240) cu touch-screen capacitiv
  • Camere suportate: IP / analog
  • Protocoale IP: ONVIF, Dahua, Hikvision, Sunell, Axis, Acti, Samsung (<40)
  • WiFi 150Mbps integrat, LAN 10/100
  • Tester audio, Tester PTZ multiprotocol (RS485)
  • Analizator date PTZ, Scaner PTZ
  • Unelte retele IP: IP Scaner, Port scaner, ping, server DHCP, aplicati mobile vizualizare camere/DVR, calculator, browser, etc.
  • Furnizeaza 12V/1A la camera
  • Inregistrare pe card microSD
  • 8 ore autonomie in utilizare
  • Baterie LI - 3.7V 3000mA, incarcare: 3-4 ore
  • Temperatura de lucru: -10℃ ~ +50℃
  • Dimensiuni/Greutate: 115mm x 75mm x 33mm / 300g

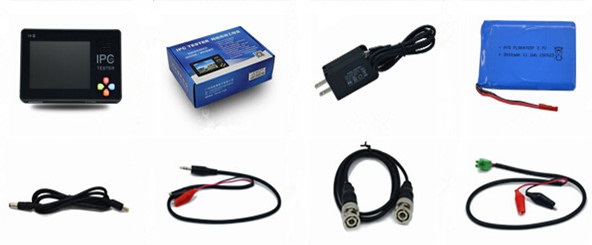

Pachetul contine urmatoarele accesorii:

Specificatii tehnice Tester CCTV T-1600:

Model

Wrist IP tester IPC-1600

Screen display

Capacity touch screen 3.5 inch touch screen display ,320(RGB)*240 resolution

Network port

10/100M auto-adapt,RJ45

WIFI

Built in WIFI, rate 150M,receive the image from the IP camera

IP camera test

ONVIF,ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, customizable acceptable

Video IN

1channel Video BNC IN,PAL/NTSC

Zoom image

Analog camera image 4xzoom ,and IP camera image 4xzoom and move

Snapshot, video record and playback

Capture the video image displayed and save as a JPEG file. The recorded files can play directly via Media player or under the function of "Playback".

DC 12Vpower output

Output DC12V1A power for camera

Audio test

1 channel audio signal input, test whether the sound normal, can save the record

PTZ control

Support RS232/RS485 control,rate 600-115200bps

Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.

Data monitor

Captures and analyzes the command data from controlling device (RS185/RS232)

Network test

IP address scan, link monitor, Ping. Find out the connected IP camera or the other network equipment IP address quickly

Power

Power Adapter

DC 5V(1.5A)

Battery

Built-in 3.7V Lithium polymer battery ,3000mAh

Rechargeable

After charging 3-4 hour, working time lasts 8 hours

Parameter

Operation setting

English/Chinese and other languages can choose

Auto off

5-30 (mins)

General

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

115mm x 75mm x 33mm / 300g
