Unitate centrala de baza gama JA-100, cu comunicator GSM/GPRS integrat, Jablotron JA-101K

JABLOTRON, JA100
Scrie o recenzie
  • Sistem de alarma antiefractie, profesional.

  • Module alarma wireless.
    Transmitere alarma GSM sau linie terestra

  • Solicita preconfigurare sistem de alarma.
  • Intreaba de oferta de pret UltraMaster

  • Tel. 0348 88 00 21

JA-101K

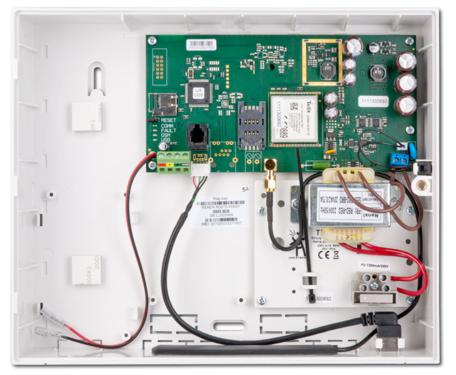

Unitate centrala de baza gama JA-100, cu comunicator GSM/GPRS integrat, Jablotron JA-101K

  • Unitate centrala de baza gama JA-100 cu comunicator GSM/GPRS integrat
  • Echipata cu card de memorie de 1GB pentru memorarea evenimentelor, mesajelor vocale, imaginilor etc
  • Ofera pana la 50 de zone wireless sau cablate
  • 50 coduri de utilizator
  • 6 partitii
  • 8 iesiri programabile
  • rapoarte prin SMS la 8 numere
  • raport vocal pentru 5 utilizatori prin SMS
  • 4 setari ARC (Alarm Receiving Centre)
  • Include borne pentru modul radio JA-110R si 1 BUS adresabil pentru periferice ( elemente de detectie, informare, alarmare , actionare , etc )

The JA-101K offers:

  • up to 50 wireless or BUS hardwired zones
  • up to 50 user codes
  • up to 6 sections
  • up to 8 programmable outputs
  • 20 independent calendars
  • system reports to 8 users by SMS
  • 5 users have option of voice and SMS reporting
  • 4 ARC settings
  • 4 selectable reports to ARC

It has a built-in GSM/GPRS communicator on the board offering communication by voice, SMS or GPRS to end users or to ARC centers. It is equiped with a 1 GB memory card on the board for saving event reports, a voice menu and messages, the storage of pictures and more.

The main control unit includes terminals:

  • 1x BUS terminal
  • 1x terminal for built-in radio module (JA-110R)

Specifications

Power source 230 V / 50 Hz, max. 0.1 A, security class II
Backup battery 12V; 2.9Ah (2.2 to 7Ah)
Maximum time needed for battery recharge 72 h
Max. continuous control panel current output 400 mA
Max. continuous current output for 12 hour backup 125 mA with a 2.6Ah battery
Max. number of enrolled devices 50
LAN communicator no
Battery A type (EN 50131-6)
QUAD-BAND GSM communicator 850/900/1800/1900MHz
Operating frequency (with the JA-110R module) 868.1 MHz ISM band
Invalid code-entries exceeded After 10 incorrect code entries
Event memory approx. 1 million of the latest events including date and time
Security rating 2 according to EN 50131-1, EN 50131-3-6, EN 50131-5-3
Operating environment Class II indoor general (-10 to +40°C), according to EN 50131-1
Radio transmission conformity ETSI EN 300220 (R module), ETSI EN 301 419-1, EN 301 511
EMC conformity EN 50130-4, EN 55022, ETSI EN 301 489-7
Security conformity EN 60950-1
Can be operated according to ERC REC 70-03
CLIP protocol (caller ID + SMS) ETSI EN 300 089
Disponibilitate:
3-5 zile

Sistem alarma

Tip alarma:
  • Cu fir
Capacitate:
  • 1-5 Partitii
  • 16+ Zone
Gama produse:
  • JA100

Manual utilizator JK-101K (JA-101K.pdf, 382 Kb) [Download]
