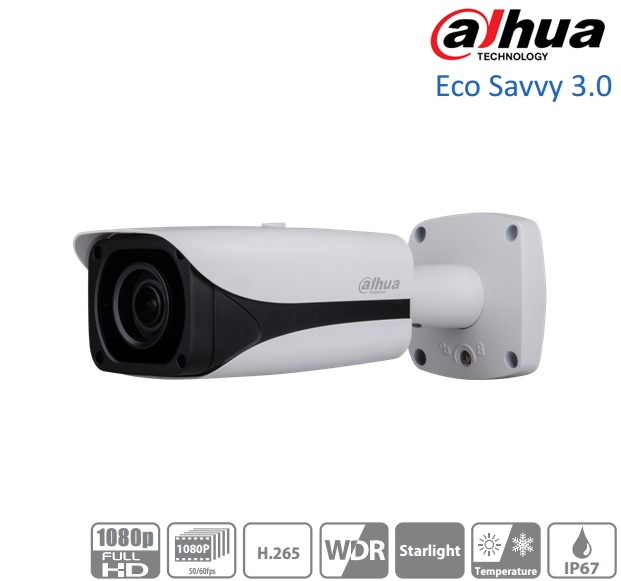

Camera supraveghere video IP 2MP IR 50m, Dahua IPC-HFW5231E-Z
Dahua IPC-HFW5231E-Z este o camera de supraveghere video atat pentru interior cat si de exterior, rezolutie 2MP ( 1920x1080 pixeli), lentila varifocala 2.7~12mm cu zoom motorizat, slot pentru card SD de pana la 128GB, proiector infrarosu Smart IR ce ofera imagini pe timp de noapte pe o distanta de pana la 50 metri.
Camera de supraveghere video IP Dahua IPC-HFW5231E-Z dispune de carcasa tip "Bullet" antivandal fabricata din metal, rezistenta la intemperii, montaj aplicat la interior sau exterior pe perete sau tavan.
Dahua IPC-HFW5231E-Z permite controlul lentilei direct din DVR prin consola locala sau de la distanta prin Internet fara cabluri suplimentare, comenzile de zoom optic si de focus fiind transmise prin acelasi cablu. Putem astfel sa modificam oricand unghiul de vizualizare al camerei de supraveghere fara interventia fizica asupra camerei, iar dupa modificarea zoom-ului, focalizarea se face automat si cu mare precizie.
Caracteristici principale camera supraveghere video IP Dahua IPC-HFW5231E-Z:
- Senzor imagine: 1/2.8" 2 Megapixeli Progressive scan STARVIS™ CMOS;
- Rezolutie: 50fps@1080P(1920x1080);
- Functii: WDR (120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC;
- Compresie: H.265/ H.264;
- Lentila: 2.7 ~ 12mm, zoom motorizat;
- Functii inteligente: IVS;
- Proiector IR 50m;
- Intrari: 1 intrare audio, 2 intrari alarma;
- Suport card: Micro SD 128GB;
- Grad protectie: IP67;
- Alimentare: PoE.
Specificatii tehnice camera supraveghere video IP Dahua IPC-HFW5231E-:
| Senzor | 1/2.8" 2 Megapixeli progressive scan CMOS |
| Pixeli efectivi | 1920(H)x1080(V) |
| RAM/ ROM | 256MB/ 32MB |
| Sistem scanare | Progresiv |
| Iluminare minima | 0.006Lux/ F1.4 (Color, 1/3s, 30IRE) 0.05Lux/ F1.4 (Color, 1/30s, 30IRE) 0 Lux/ F1.4 IR pornit |
| Viteza Shutter Electronic | Auto/ Manual, 1/3 ~ 1/100.000s |
| Raport S/N | >50dB |
| Day/Night | Auto (ICR)/ Color/ A/N |
| Gain Control | Auto/ Manual |
| White Balance | Auto/ Zi însorita/ Noapte/ Exterior/ Manual |
| Backlight Compensation | BLC/ HLC/ WDR (120dB) |
| Noise Reduction | 3D DNR |
| Zone private | Pana la 4 zone dreptunghiulare |
| Zoom digital | 16X |
| Region of Interest (ROI) | On/ Off, 4 zone |
| Detectie de Miscare | On/ Off, 4 zone |
| Distanta maxima IR | 4 LEDuri IR, maxim 50m |
| Lentila | |
| Tip lentila | Motorizata (auto iris), incorporata |
| Distanta focala | 2.7 ~ 12mm |
| Unghi vizualizare | H: 97° ~ 34°, V: 52° ~ 20° |
| Zoom optic | 4X |
| Diafragma | F1.4 |
| Control focus | Motorizat |
| DORI | |
| Detectare | W: 48m T: 133m |
| Observare | W: 19m T: 53m |
| Recunoaștere | W: 10m T: 27m |
| Identificare | W: 5m T: 13m |
| Functii inteligente | |
| IVS | Tripwire Detectie intrusi Detectie obiect abandonat/ lipsa Detectie faciala |
| Video | |
| Compresie | H.265+/ H.265/ H.264+/ H.264 |
| Capacitate streaming | 3 streamuri |
| Rezolutie | 1080P(1920x1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704x576)/ VGA(640x480)/ CIF(352x288) |
| FPS | Main Stream: 1080P(1 ~ 50fps) Sub Stream: D1(1 ~ 50fps) Extra Stream: 1080P(1 ~ 25fps) |
| Control Bit Rate | CBR/ VBR |
| Bit Rate | H.264: 24K ~ 9472Kbps H.265: 14K ~ 5632Kbps |
| Audio | |
| Compresie | G.711a/ G.711Mu/ AAC/ G.726 |
| Intrari | 1 canal |
| Iesiri | 1 canal |
| Retea | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Compatibilitate | ONVIF, PSIA, CGI |
| Metoda streaming | Unicast/ Multicast |
| Numar utilizatori | 10/ 20 utilizatori |
| Stocare | NAS PC local Card Micro SD 128GB |
| Smart Phone | iOS, Android |
| Software management | Smart PSS, DSS, Easy4ip |
| Interfete auxiliare | |
| Interfata video | 1 port, pentru reglaje |
| Slot memorie | Micro SD, maxim 128GB |
| Alarma | 2 intrari: 5mA 5VDC 1 iesire: 300mA 12VDC |
| General | |
| Alimentare | DC12V, PoE (802.3af) |
| Consum | <11.5W |
| Mediu functionare | -30°C ~ 60°C, umiditate relativa <95% |
| Standard protectie | IP67 |

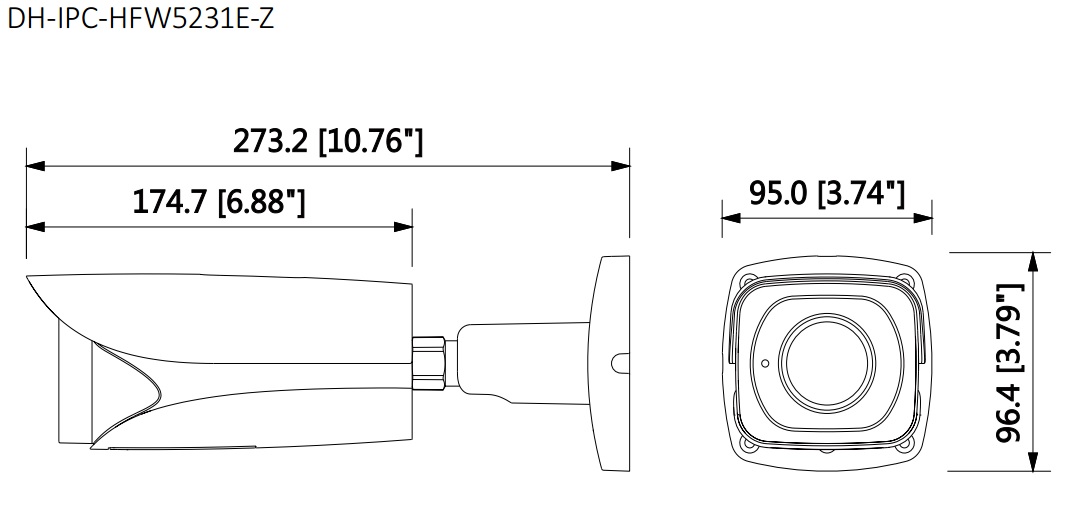

| Dimensiuni | 273.2mm x 95mm x 96.4mm |
| Greutate | 1.07Kg |
| Carcasă | Metal |
